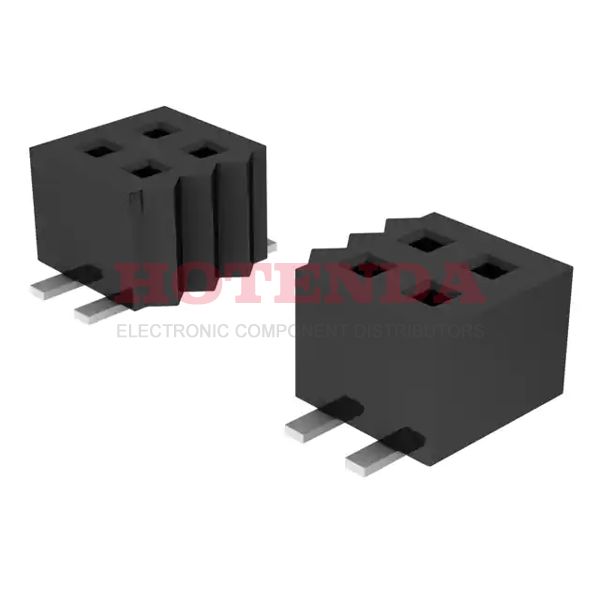

Name: CLP-140-02-S-D-P
Brand: Samtec Inc.
SKU: CLP-140-02-S-D-P
Availability: InStock

new-10%

CLP-140-02-S-D-P

Manufacturer part number:CLP-140-02-S-D-P

Manufacturer:Samtec Inc.

Description:2 Rows Receptacle Solder Phosphor Bronze Surface Mount Tube Gold Liquid Crystal Polymer (LCP) 80 Positions Female Socket

Case Package:SOT-23

Datasheet:CLP-140-02-S-D-P Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	CLP
JESD-609 Code	e3
Feature	Pick and Place
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	80
Number of Rows	2
Voltage - Rated	240VAC 330VDC
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	3.3A per Contact
Total Number of Contacts	28
Insulation Height	0.084 2.14mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Body Length or Diameter	0.717 inch
Row Spacing - Mating	0.050 (1.27mm)
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Body Depth	0.09 inch
Contact Resistance	10mOhm
Mating Contact Pitch	0.05 inch
Insertion Force-Max	1.0564 N
Withdrawl Force-Min	.556 N
Plating Thickness	30μin
Contact Finish Thickness - Mating	30.0μin 0.76μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

CLP-140-02-S-D-P Product Details

CLP-140-02-S-D-P Overview

It comes in Receptacle packaging.The device's mounting type is Surface Mount.In order to package the product, a Tube case is used.It belongs to the CLP Series of products.Its Pick and Place feature renders it more powerful in many ways.The device runs in -55°C~125°C Operating Temperature.
