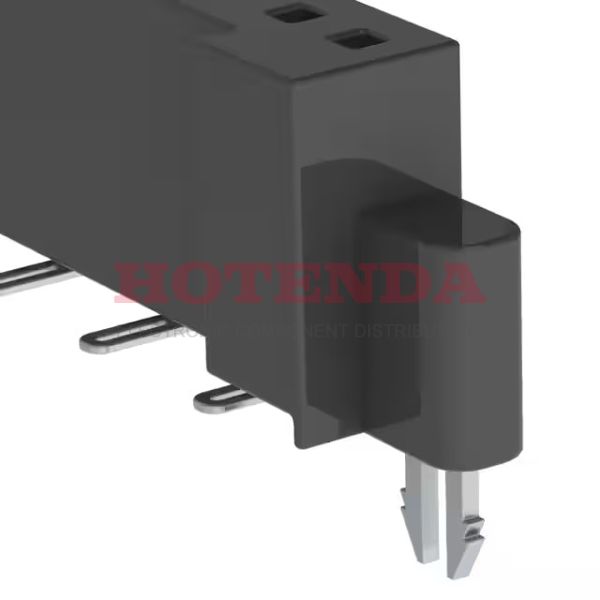

Name: SFM-110-02-F-S-LC
Brand: Samtec Inc.
SKU: SFM-110-02-F-S-LC
Availability: InStock

new-10%

SFM-110-02-F-S-LC

Manufacturer part number:SFM-110-02-F-S-LC

Manufacturer:Samtec Inc.

Description:1 RowsReceptacleSolderBeryllium CopperSurface MountBulkGoldLiquid Crystal Polymer (LCP)10 PositionsFemale Socket

Case Package:SOT-23

Datasheet:SFM-110-02-F-S-LC Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Beryllium Copper
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	Tiger Eye™ SFM
JESD-609 Code	e3
Feature	Board Lock
Pbfree Code	yes
Part Status	Active
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	10
Number of Rows	1
Gender	Female
Voltage - Rated	250VAC
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.2A per Contact
Total Number of Contacts	10
Insulation Height	0.185 4.70mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Number of Conductors	ONE
Reliability	COMMERCIAL
Body Length or Diameter	0.655 inch
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	STAGGERED
Body Breadth	0.095 inch
UL Flammability Code	94V-0
Mating Contact Pitch	0.05 inch
Plating Thickness	3μin
Contact Finish Thickness - Mating	3.00μin 0.076μm
Stack Height (Mating)	6.15mm 6.30mm 7.92mm 8.08mm 9.70mm 9.86mm 11.61mm 11.76mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

SFM-110-02-F-S-LC Product Details

SFM-110-02-F-S-LC Overview

It comes in a Receptacle package.This device's mounting type is Surface Mount.We use a Bulk case to package the product.A member of the Tiger Eye™ SFM Series.In many ways, its Board Lock feature makes it more powerful.Operating temperature is -55°C~125°C.
