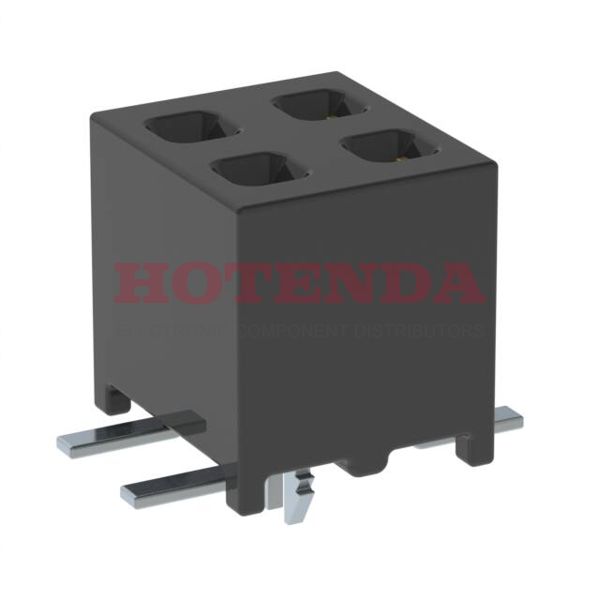

Name: MMS-102-02-L-DV-LC
Brand: Samtec Inc.
SKU: MMS-102-02-L-DV-LC
Availability: InStock

new-10%

MMS-102-02-L-DV-LC

Manufacturer part number:MMS-102-02-L-DV-LC

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderPhosphor BronzeSurface MountBulkGoldLiquid Crystal Polymer (LCP)4 PositionsFemale Socket

Case Package:SOT-23

Datasheet:MMS-102-02-L-DV-LC Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Option 1	LOCKING
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	MMS
JESD-609 Code	e3
Feature	Board Lock
Part Status	Active
Termination	Solder
Connector Type	Receptacle
Number of Positions	4
Number of Rows	2
Gender	Female
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.9A per Contact
Total Number of Contacts	4
Insulation Height	0.177 4.50mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Body Length or Diameter	0.18 inch
Row Spacing - Mating	0.079 (2.00mm)
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.157 inch
Body Depth	0.177 inch
Contact Resistance	10mOhm
Mating Contact Pitch	0.079 inch
Polarization Key	POLARIZED HOUSING
PCB Contact Row Spacing	5.3086 mm
Withdrawl Force-Min	.6116 N
Plating Thickness	10μin
Contact Finish Thickness - Mating	10.0μin 0.25μm
Radiation Hardening	No
RoHS Status	RoHS Compliant

MMS-102-02-L-DV-LC Product Details

MMS-102-02-L-DV-LC Overview

The packaging is Receptacle.Mounting type Surface Mount is assigned to the device.We use a Bulk case to package the product.It belongs to the MMS Series of products.A number of benefits can be derived from the Board Lock feature of this application.The device runs in -55°C~125°C Operating Temperature.
