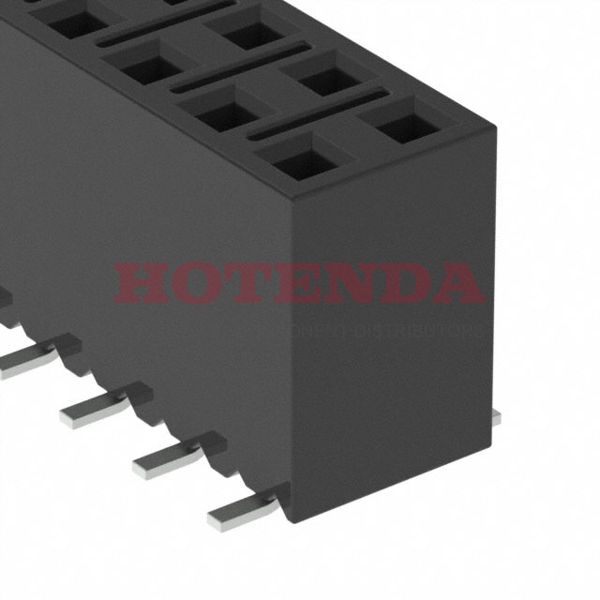

Name: SSM-128-TM-DV
Brand: Samtec Inc.
SKU: SSM-128-TM-DV
Availability: InStock

new-10%

SSM-128-TM-DV

Manufacturer part number:SSM-128-TM-DV

Manufacturer:Samtec Inc.

Description:2 RowsReceptacle, Pass ThroughSolderPhosphor BronzeSurface MountBulkTinLiquid Crystal Polymer (LCP)56 PositionsFemale Socket

Case Package:SOT-23

Datasheet:SSM-128-TM-DV Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	SSM
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Termination	Solder
Connector Type	Receptacle, Pass Through
Number of Positions	56
Number of Rows	2
Gender	Female
Voltage - Rated	405VAC 572VDC
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	5.2A per Contact
Total Number of Contacts	56
Insulation Height	0.290 7.37mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
UL Flammability Code	94V-0
RoHS Status	ROHS3 Compliant

SSM-128-TM-DV Product Details

SSM-128-TM-DV Overview

This product is packaged in a Receptacle, Pass Through cartonThis device has a mounting type of Surface Mount.Bulk cases are used to package the product.The product belongs to the SSM Series.This device operates at a temperature of -55°C~125°C.
