Name: BSW-120-04-S-S-S
Brand: Samtec Inc.
SKU: BSW-120-04-S-S-S
Availability: InStock

new-10%

BSW-120-04-S-S-S

Manufacturer part number:BSW-120-04-S-S-S

Manufacturer:Samtec Inc.

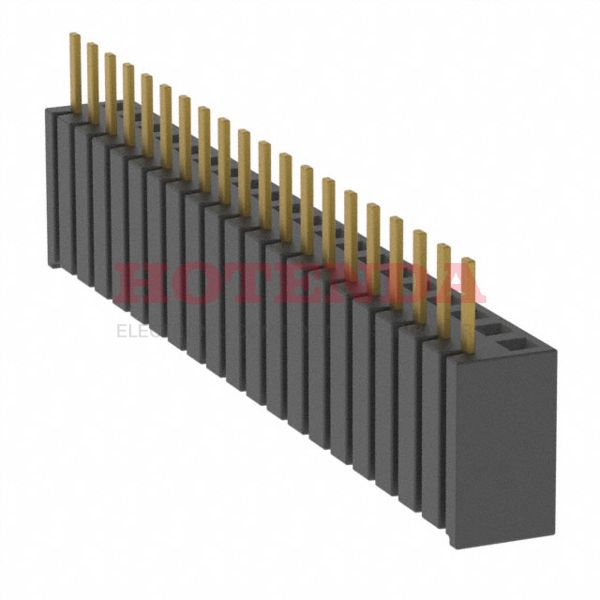

Description:1 RowsReceptacle, BreakawaySolderPhosphor BronzeThrough Hole, Bottom MountBulkGoldPolyethylene Terephthalate (PET), Glass Filled20 PositionsFemale Socket

Case Package:SOT-23

Datasheet:BSW-120-04-S-S-S Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole, Bottom Mount
Contact Shape	Square
Insulation Material	Polyethylene Terephthalate (PET), Glass Filled
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	BSW
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle, Breakaway
Number of Positions	20
Number of Rows	1
Gender	Female
Additional Feature	WITH STANDOFFS
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Terminal Pitch	2.54mm
Insulation Height	0.350 8.89mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Body Length or Diameter	2.03 inch
Contact Length - Post	0.150 3.81mm
Number Of PCB Rows	1
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.2 inch
UL Flammability Code	94V-0
Body Depth	0.35 inch
Insulation Resistance	5000000000Ohm
Polarization Key	POLARIZED HOUSING
Insertion Force-Max	2.224 N
Withdrawl Force-Min	2.224 N
Plating Thickness	30μin
Contact Finish Thickness - Mating	30.0μin 0.76μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

BSW-120-04-S-S-S Product Details

BSW-120-04-S-S-S Overview

Receptacle, Breakaway packaging is included.Through Hole, Bottom Mount is the mounting type of the device.To package the product, we use a Bulk case.This product is in the BSW Series.Additionally, there are other features, such as WITH STANDOFFS.By Through Hole, the part is mounted.-55°C~125°C Operating Temperature is the default.
