MC100ES6139EJR2 Overview
As a clock IC, it uses the Tape & Reel (TR) package. 20-TSSOP (0.173, 4.40mm Width) contains this Clock PLL. This Clock PLL will be fed by ECL, HSTL, LVDS, PECL as its input. There are 1 circuits implemented in order to achieve full performance from this electronic part. Providing a maximum frequency of 1GHz, this clock-based RF synthesizer is suitable for a variety of applications. The Surface Mount allows this electrical component to be easily installed on the panel. There are 3.135V~3.8V different supply voltages that can be provided for this RF synthesizer. Based on test statistics, ambient temperature should be set at 0°C~70°C. I would like to present to you a frequency synthesizer that is compatible with LVPECL logic levels. This is an electronic part that can be classified as a Clock Generator in this case. MC100ES6139 is the base part number for finding related electronic parts.
MC100ES6139EJR2 Features

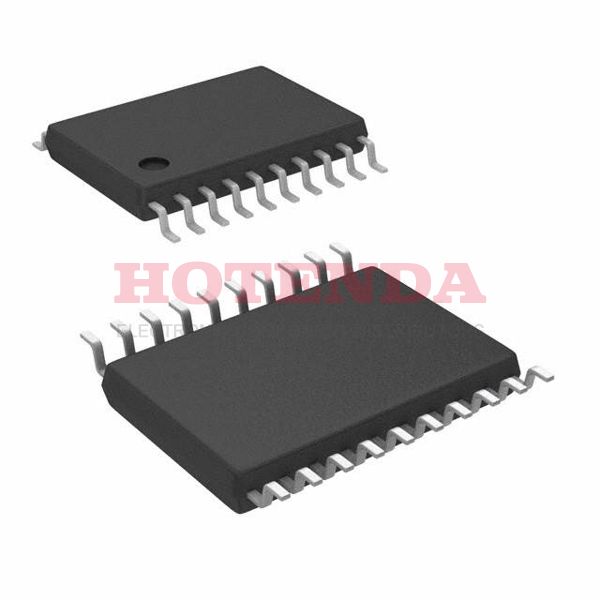

Available in the 20-TSSOP (0.173, 4.40mm Width)
MC100ES6139EJR2 Applications
There are a lot of Renesas Electronics America Inc.
MC100ES6139EJR2 Clock Generators applications.
- Sampling clocks for ADC and DAC
- 1 Gigabit Ethernet
- 10 Gigabit Ethernet
- FPGA and processor clocks
- Line cards used in telephone exchange
- Fiber Channel
- PCI express cards
- Infotainment systems
- Medical equipment
- Multi-function printers
