SA8027DH,512 Overview

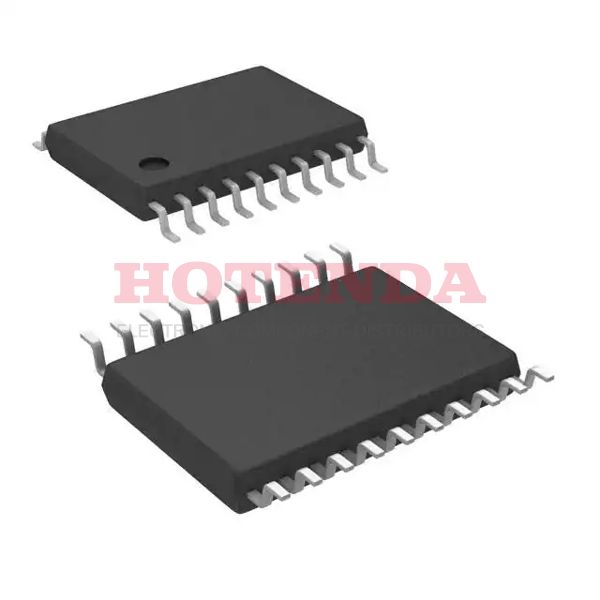

A clock integrated circuit is packaged in a Tube-shaped package because it is for use as a clock. There is a clock generator embedded in the 20-TSSOP (0.173, 4.40mm Width) package. When reflowed, this frequency generator can withstand a maximum temperature of 260. As you can see, it consists of 20 terminations. A voltage of 3V should be applied to this electronic frequency generator. Clock is designed as this clock generator's input. For a full understanding of the electronic part's performance, 1 circuits are implemented. An up to 2.5GHz frequency is provided by this clock-based RF synthesizer. Because of the Surface Mount, clock PLL can be easily mounted on the panel. The maximum voltage this clock PLL can handle is 3.6V. The supply voltage (Vsup) should be kept above 2.7V for normal operation. Clock PLL works with 2.7V~3.6V supply voltage provided. The temperature should be set at -40°C~85°C to ensure reliable performance. As far as electrical parts go, this component can be classified as a Fractional N Synthesizer component. Clock PLL is equipped with 20 pin count. This part number is related to its related electronic parts. In general, this clock PLL is considered a PLL or Frequency Synthesis Circuits device.
SA8027DH,512 Features
Available in the 20-TSSOP (0.173, 4.40mm Width)
Supply voltage of 3V
SA8027DH,512 Applications
There are a lot of NXP USA Inc. SA8027DH,512 Clock Generators applications.
- Melting
- Various decoding circuits
- Frequency synthesis
- GPS systems
- Precision auxiliary angle deflection measurement
- Bit synchronization
- Digital logic circuits
- Cellular/4G
- Skew suppression
- Signal demodulation
