840004BGI-01LFT Overview

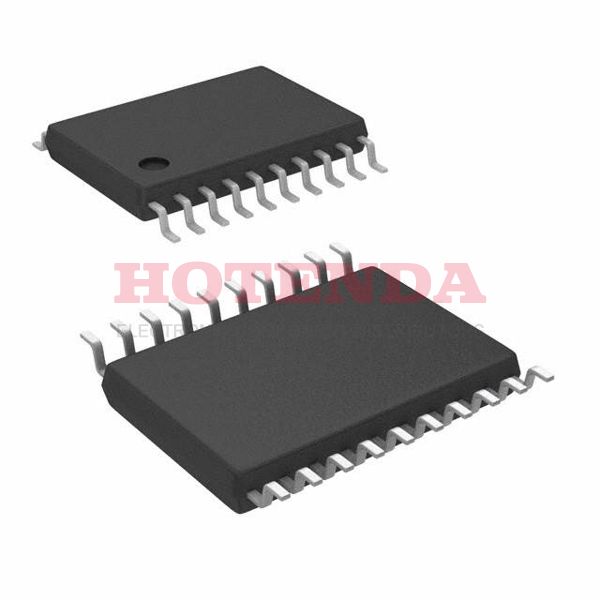

As a clock IC, it is packaged by the Tape & Reel (TR) method. The 20-TSSOP (0.173, 4.40mm Width) package embeds this Clock PLL. There is a Clock PLL called LVCMOS, LVTTL, Crystal which is designed to be the input to this clock generator. Using 1 circuits, the electronic part's full performance can be accessed. RF synthesizers based on this clock provide frequencies up to 156.25MHz maximum. A Surface Mount-shaped electrical component makes it convenient to mount on a panel. There should be 2.375V~3.465V provided with this RF synthesizer. As determined by the test statistics, the ambient temperature should be set to -40°C~85°C. In this case, we are dealing with a frequency synthesizer that can be used with LVCMOS, LVTTL logic levels. As far as this electronic part is concerned, it can be classified as a Frequency Synthesizer component. The related electronic parts of part number ICS840004-01 are listed below. There is an electronic part in this series that belongs to the FemtoClock® family.
840004BGI-01LFT Features
Available in the 20-TSSOP (0.173, 4.40mm Width)
840004BGI-01LFT Applications
There are a lot of Renesas Electronics America Inc.
840004BGI-01LFT Clock Generators applications.
- Picocells, femtocells and small cells
- Sampling clocks for ADC and DAC
- 1 Gigabit Ethernet
- 10 Gigabit Ethernet
- FPGA and processor clocks
- Line cards used in telephone exchange
- Fiber Channel
- PCI express cards
- Infotainment systems
- Medical equipment
