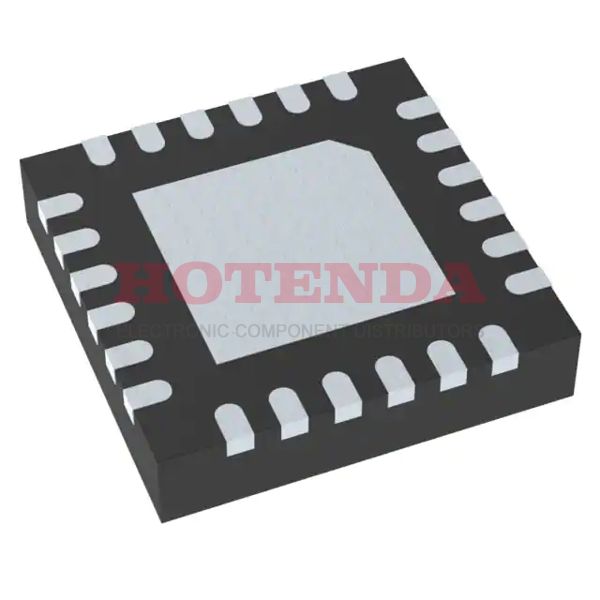

CDC421100RGETG4 Overview
Clock ICs are packaged using the Tape & Reel (TR) method. The 24-VFQFN Exposed Pad package includes this clock generator. In the reflowing process, this clock generator ic is able to maintain a maximum temperature of 260. It contains a total of 24 terminations within RF synthesizer. Clock generator ics require a voltage of 3.3V. This clock generator receives its inputs from LVCMOS, Crystal, which is designed to be the clock source. For full access to the electronic component's capabilities, 1 circuits are implemented. This clock-based frequency generator provides a frequency up to 100MHz Max. A Surface Mount-shaped electrical component makes it convenient to mount on a panel. As long as there are 3V~3.6V supply voltages provided, clock generator ic should work. As determined by the test statistics, the ambient temperature should be set to -40°C~85°C. The frequency synthesizer in this product is compatible with all levels of LVPECL logic. This electronic component can be classified into Clock Generator. There is a 24-bit clock-generating IC built specifically for microprocessors in this frequency generator. The related electrical components for the base part number CDC421100 can be found below. There are 24 pins that are available on the clock PLL. The maximum supply voltage that clock generator can handle is 3.3V. By operating at a frequency of 33.33MHz, frequency generator is able to achieve high efficiency.
CDC421100RGETG4 Features
Available in the 24-VFQFN Exposed Pad
Supply voltage of 3.3V
Operating supply voltage of 3.3V
CDC421100RGETG4 Applications
There are a lot of Texas Instruments CDC421100RGETG4 Clock Generators applications.
- Automatic test equipment
- Electronic equipment
- Camera systems
- Radiotelephones
- Media broadcast servers
- Frequency Modulation (FM) stereo decoders
- Wide area power system
- Remote telemetry and instrumentation
- Jitter reduction
- Local oscillators (LOs)
