Name: 399-87-109-10-003101
Brand: Preci-Dip
SKU: 399-87-109-10-003101
Price: 0.64000 USD
Availability: InStock

new-10%

399-87-109-10-003101

Manufacturer part number:399-87-109-10-003101

Manufacturer:Preci-Dip

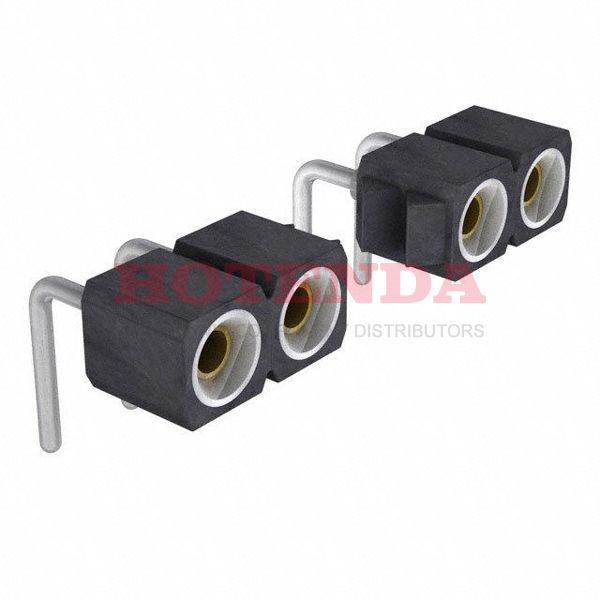

Description:1 RowsSocketSolderBeryllium CopperThrough Hole, Right AngleBulkGoldPolycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled9 PositionsFemale Socket

Case Package:SOT-23

Datasheet:399-87-109-10-003101 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Beryllium Copper
Contact Plating	Gold, Tin
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Contact Shape	Circular
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Housing Material	Glass fibre
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2010
Series	399
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Socket
Number of Positions	9
Number of Rows	1
Voltage - Rated	150V
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Orientation	Right Angle
Depth	2.54mm
Insulation Height	0.100 2.54mm
Style	Board to Board
Number of Positions Loaded	All
Current Rating	3A
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Contact Length - Post	0.126 3.20mm
Contact Finish - Post	Tin
Length	22.86mm
Width	2.95mm
Contact Finish Thickness - Mating	Flash
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

399-87-109-10-003101 Product Details

399-87-109-10-003101 Overview

The product comes in a package of Socket.This device is mounted in the Through Hole, Right Angle position.Packaged in a Bulk case.It's part of the 399 Series.By Through Hole, the part is mounted.It operates at an operating temperature of -55°C~125°C.
