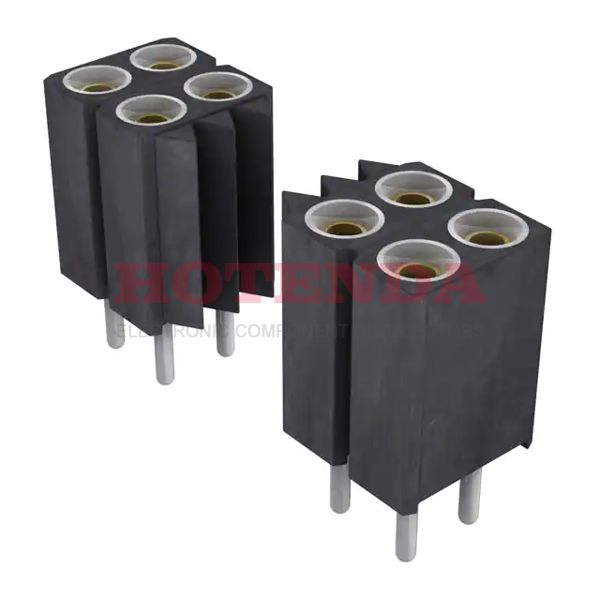

Name: 803-83-054-10-001101
Brand: Preci-Dip
SKU: 803-83-054-10-001101
Price: 6.81000 USD
Availability: InStock

new

803-83-054-10-001101

Manufacturer part number:803-83-054-10-001101

Manufacturer:Preci-Dip

Description:2 RowsSocketSolderBeryllium CopperThrough HoleBulkGoldPolycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled54 PositionsFemale Socket

Case Package:SOT-23

Datasheet:803-83-054-10-001101 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Beryllium Copper
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Circular
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2012
Series	803
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Socket
Number of Positions	54
Number of Rows	2
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	3A
Insulation Height	0.276 7.00mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.118 3.00mm
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5μin 0.75μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

803-83-054-10-001101 Product Details

803-83-054-10-001101 Overview

The packaging is Socket.This device has a Through Hole mounting type.We pack the product in a Bulk case.The product is a member of the 803 Series.In this case, Through Hole mounts the part.It operates at an operating temperature of -55°C~125°C.
