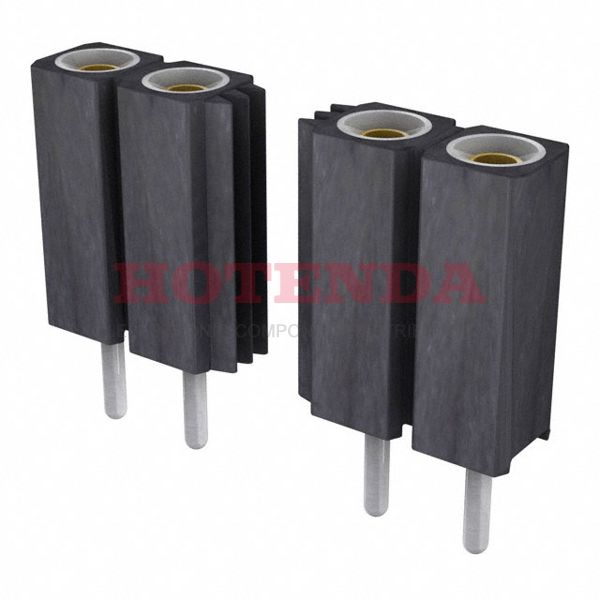

Name: 801-83-021-10-004101
Brand: Preci-Dip
SKU: 801-83-021-10-004101
Price: 3.00000 USD
Availability: InStock

new-10%

801-83-021-10-004101

Manufacturer part number:801-83-021-10-004101

Manufacturer:Preci-Dip

Description:1 RowsSocketSolderBeryllium CopperThrough HoleBulkGoldPolycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled21 PositionsFemale Socket

Case Package:SOT-23

Datasheet:801-83-021-10-004101 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Beryllium Copper
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Circular
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2012
Series	801
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Socket
Number of Positions	21
Number of Rows	1
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	3A
Terminal Pitch	2.54mm
Insulation Height	0.276 7.00mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Contact Length - Post	0.114 2.90mm
Number Of PCB Rows	1
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Body Depth	0.276 inch
Polarization Key	POLARIZED HOUSING
Plating Thickness	30μin
Contact Finish Thickness - Mating	29.5μin 0.75μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

801-83-021-10-004101 Product Details

801-83-021-10-004101 Overview

Currently, it is packaged in Socket.Mounting type is Through Hole.It is necessary to use a Bulk case for packaging the product.This product is in the 801 Series.You've got Through Hole mounted on the part.-55°C~125°C Operating Temperature is the default operating temperature for the device.
