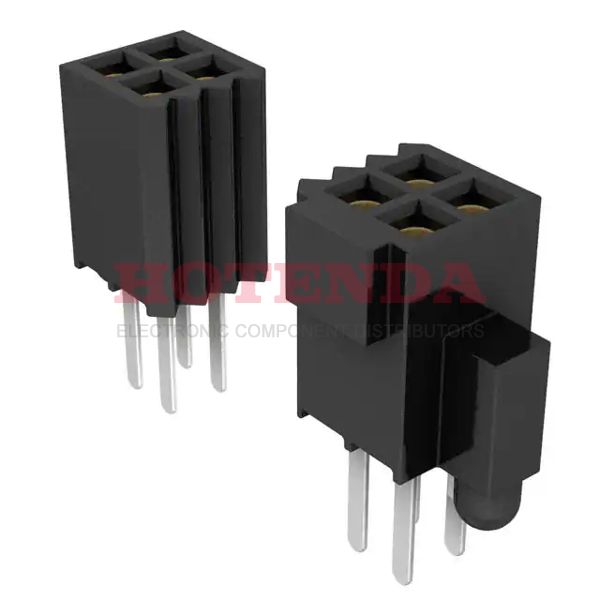

Name: SFM-140-01-L-D-A
Brand: Samtec Inc.
SKU: SFM-140-01-L-D-A
Price: 20.75000 USD
Availability: InStock

new

SFM-140-01-L-D-A

Manufacturer part number:SFM-140-01-L-D-A

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderBeryllium CopperThrough HoleTubeGoldLiquid Crystal Polymer (LCP)80 PositionsFemale Socket

Case Package:SOT-23

Datasheet:SFM-140-01-L-D-A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Beryllium Copper
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Board Mounting Option	PEG
Operating Temperature	-55°C~125°C
Packaging	Tube
Published	2006
Series	Tiger Eye™ SFM
JESD-609 Code	e3
Feature	Board Guide
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	80
Number of Rows	2
Gender	Female
Voltage - Rated	250VAC
Additional Feature	TIGER EYE CONTACT
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.2A per Contact
Insulation Height	0.180 4.57mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Number of Conductors	ONE
Reliability	COMMERCIAL
Row Spacing - Mating	0.050 (1.27mm)
Contact Length - Post	0.120 3.05mm
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.145 inch
Body Depth	0.18 inch
Mating Contact Pitch	0.05 inch
Plating Thickness	10μin
Contact Finish Thickness - Mating	10.0μin 0.25μm
Stack Height (Mating)	6.02mm 6.17mm 7.80mm 7.95mm 9.58mm 9.73mm 11.48mm 11.63mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

SFM-140-01-L-D-A Product Details

SFM-140-01-L-D-A Overview

Packaging is in the form of Receptacle.Through Hole is the mounting type for the device.A Tube case is used for packaging.The product is a part of the Tiger Eye™ SFM Series.In addition, there are other features, such as TIGER EYE CONTACT, to mention just a few.There are a number of advantages to its Board Guide feature.There is no operating temperature for the device.
