ECW-F6135JL

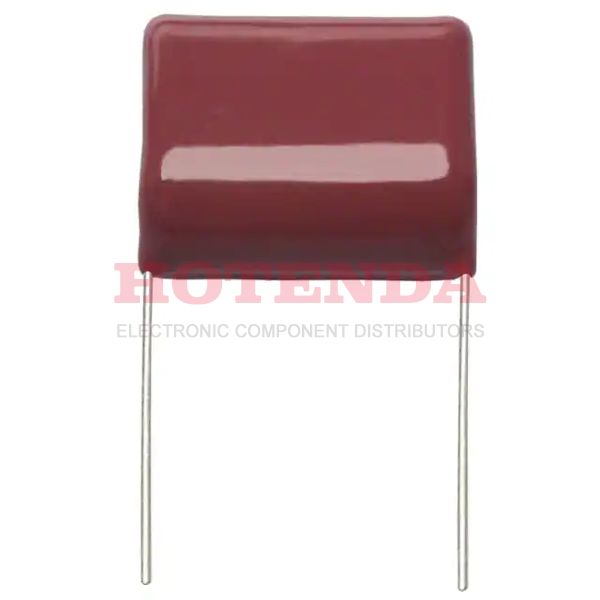

  • ECW-F6135JL - ECW-F(L) 1.3μF Film Capacitor ±5% Radial PC Pins 630V-DC Polypropylene (PP), Metallized Through Hole
  • ECW-F6135JL - ECW-F(L) 1.3μF Film Capacitor ±5% Radial PC Pins 630V-DC Polypropylene (PP), Metallized Through Hole

ECW-F6135JL

ECW-F6135JL

Panasonic Electronic Components

ECW-F(L) 1.3μF Film Capacitor ±5% Radial PC Pins 630V-DC Polypropylene (PP), Metallized Through Hole

SOT-23

ECW-F6135JL Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-40°C~105°C
PackagingBulk
Published 2011
Series ECW-F(L)
Size / Dimension 1.102Lx0.693W 28.00mmx17.60mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications High Frequency, Switching
HTS Code8532.25.00.70
Capacitance 1.3μF
Voltage - Rated DC 630V
Packing Method AMMO PACK
Terminal Pitch17.5mm
Depth 17.6mm
Lead Pitch 25mm
Capacitor Type FILM CAPACITOR
Lead Length 25mm
Dielectric PP
Lead Spacing0.984 25.00mm
Lead Diameter 800 μm
Height Seated (Max) 1.020 25.91mm
RoHS StatusRoHS Compliant
Lead Free Lead Free
In-Stock:4922 items

Pricing & Ordering

QuantityUnit PriceExt. Price

ECW-F6135JL Product Details

ECW-F6135JL Overview


The lead spacing of this electrical device is 0.984 25.00mm.In a temperature range of -40°C~105°C, the device can be operated.

ECW-F6135JL Features



ECW-F6135JL Applications


There are a lot of Panasonic Electronic Components ECW-F6135JL applications of film capacitors.

  • Battery management system
  • RFI for automotive
  • Filtering
  • RF Modules
  • Audio/video equipment
  • Blocking
  • Coupling, decoupling
  • TV and monitor sets
  • Electronic ballasts
  • VCO's
