565MMR100K

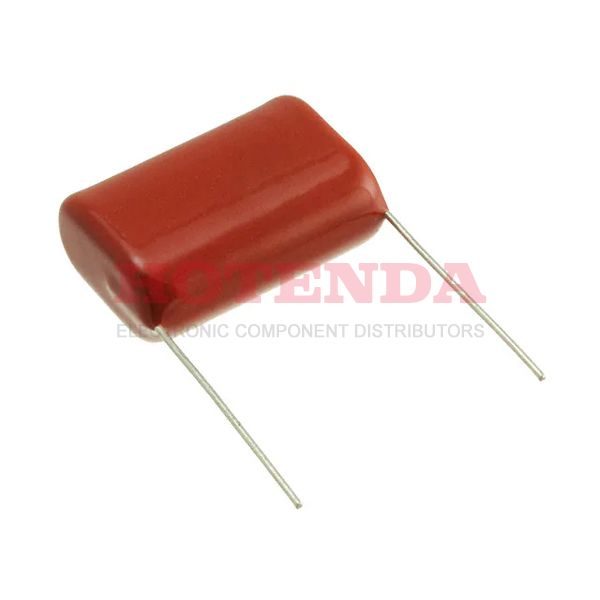

  • 565MMR100K - MMR 5.6μF Film Capacitor ±10% Radial PC Pins 100V-DC 63V-AC Polyester, Metallized Through Hole
  • 565MMR100K - MMR 5.6μF Film Capacitor ±10% Radial PC Pins 100V-DC 63V-AC Polyester, Metallized Through Hole

565MMR100K

565MMR100K

Illinois Capacitor

MMR 5.6μF Film Capacitor ±10% Radial PC Pins 100V-DC 63V-AC Polyester, Metallized Through Hole

SOT-23

565MMR100K Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 22 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~105°C
PackagingBulk
Published 2012
Series MMR
Size / Dimension 1.024Lx0.327W 26.00mmx8.30mm
Tolerance ±10%
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Applications General Purpose
Capacitance 5.6μF
Voltage - Rated DC 100V
Voltage - Rated AC 63V
Lead Pitch 22.5044mm
Lead Spacing0.886 22.50mm
Height Seated (Max) 0.728 18.50mm
RoHS StatusROHS3 Compliant
In-Stock:3295 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.987327$1.987327
10$1.874837$18.74837
100$1.768714$176.8714
500$1.668598$834.299
1000$1.574149$1574.149

565MMR100K Product Details

565MMR100K Overview


0.886 22.50mm is the lead spacing of this electrical device.It is capable of operating at -40°C~105°C degrees Celsius.

565MMR100K Features




565MMR100K Applications


There are a lot of Illinois Capacitor
565MMR100K applications of film capacitors.


  • Bypassing
  • RFI for automotive
  • Industrial and automotive inverters
  • Battery management system
  • Test and measuring equipment
  • RF Modules
  • Mobile communications
  • Satellite TV
  • Global positioning systems
  • Filters
