B32652J1682J289

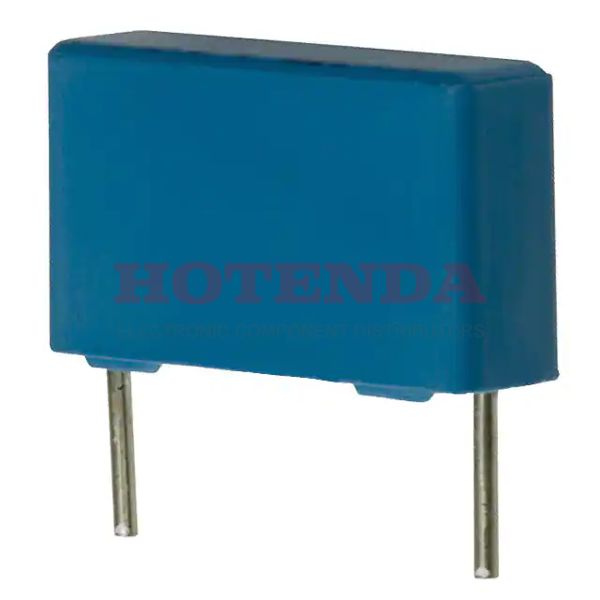

  • B32652J1682J289 - 6.8nF Film Capacitor 5% Radial PC Pins 1.6kV-DC 700V-AC Polypropylene Through Hole
  • B32652J1682J289 - 6.8nF Film Capacitor 5% Radial PC Pins 1.6kV-DC 700V-AC Polypropylene Through Hole

B32652J1682J289

B32652J1682J289

EPCOS

6.8nF Film Capacitor 5% Radial PC Pins 1.6kV-DC 700V-AC Polypropylene Through Hole

SOT-23

B32652J1682J289 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Lifecycle Status PRODUCTION (Last Updated: 2 months ago)
Mount Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolypropylene
Tolerance 5%
JESD-609 Code e3
Pbfree Code yes
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Max Operating Temperature100°C
Min Operating Temperature -55°C
Additional FeatureRATED AC VOLTAGE (V): 700
HTS Code8532.25.00.70
Capacitance 6.8nF
Voltage - Rated DC 1.6kV
Packing Method AMMO PACK
Depth 8.5mm
Voltage - Rated AC 700V
Lead Pitch 15mm
Capacitor Type FILM CAPACITOR
Dielectric PP
Rated (DC) Voltage (URdc) 1600V
Lead Diameter 800 μm
Size Code 7133
Height Seated (Max) 14.5034mm
Length 18mm
Width 8.509mm
Radiation HardeningNo
RoHS StatusRoHS Compliant
In-Stock:15730 items

Pricing & Ordering

QuantityUnit PriceExt. Price

B32652J1682J289 Product Details

B32652J1682J289 Overview


To function, systems must have a rated (DC) voltage (URdc) of 1600V.

B32652J1682J289 Features


a rated (DC) voltage (URdc) of 1600V


B32652J1682J289 Applications


There are a lot of EPCOS
B32652J1682J289 applications of film capacitors.


  • Mobile communications
  • Satellite TV
  • Global positioning systems
  • Filters
  • VCO's
  • Matching networks
  • Snubbering
  • Filtering
  • IGBT
  • Compact fluorescent lamps (CFL)
