ECW-FD2W334KB

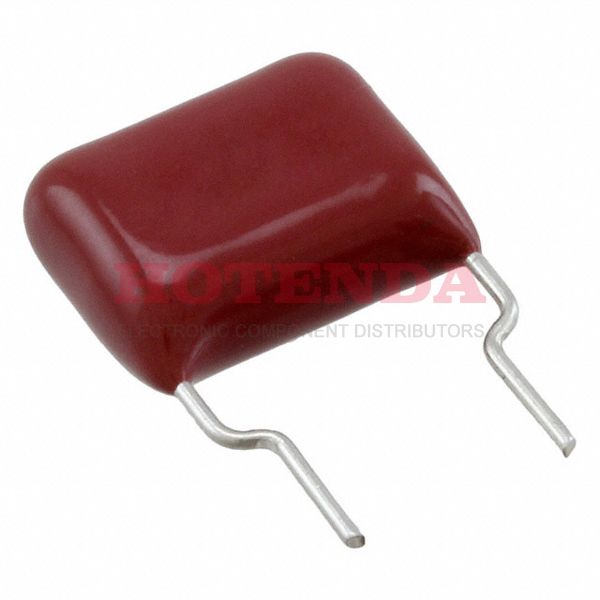

  • ECW-FD2W334KB - ECW-F(D) 0.33μF Film Capacitor ±10% Radial PC Pins 450V-DC Polypropylene (PP), Metallized PCB, Through Hole
  • ECW-FD2W334KB - ECW-F(D) 0.33μF Film Capacitor ±10% Radial PC Pins 450V-DC Polypropylene (PP), Metallized PCB, Through Hole

ECW-FD2W334KB

ECW-FD2W334KB

Panasonic Electronic Components

ECW-F(D) 0.33μF Film Capacitor ±10% Radial PC Pins 450V-DC Polypropylene (PP), Metallized PCB, Through Hole

SOT-23

ECW-FD2W334KB Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case Radial
Number of Pins 2
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-40°C~110°C
PackagingBulk
Published 2012
Series ECW-F(D)
Size / Dimension 0.496Lx0.220W 12.60mmx5.60mm
Tolerance ±10%
JESD-609 Code e3
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT
Voltage - Rated 450V
Capacitance 0.33μF
Voltage - Rated DC 450V
Lead Pitch 7.5mm
Capacitor Type FILM CAPACITOR
Dielectric PP
Lead Spacing0.295 7.50mm
Lead Diameter 600 μm
Height 15.4mm
Height Seated (Max) 0.606 15.40mm
Width 5.6mm
REACH SVHC Unknown
RoHS StatusROHS3 Compliant
In-Stock:8626 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.569432$0.569432
10$0.537200$5.372
100$0.506793$50.6793
500$0.478106$239.053
1000$0.451044$451.044

ECW-FD2W334KB Product Details

ECW-FD2W334KB Overview


This electrical device has a 0.295 7.50mm lead spacing.In a temperature range of -40°C~110°C, the device can be operated.

ECW-FD2W334KB Features



ECW-FD2W334KB Applications


There are a lot of Panasonic Electronic Components ECW-FD2W334KB applications of film capacitors.

  • Test and measuring equipment
  • TV and monitor sets
  • Switch-mode power supplies
  • Snubbering
  • Coupling, decoupling
  • Audio/video equipment
  • Compact fluorescent lamps (CFL)
  • Bypassing
  • Industrial and automotive inverters
  • Global positioning systems
