ECQ-E4393JF

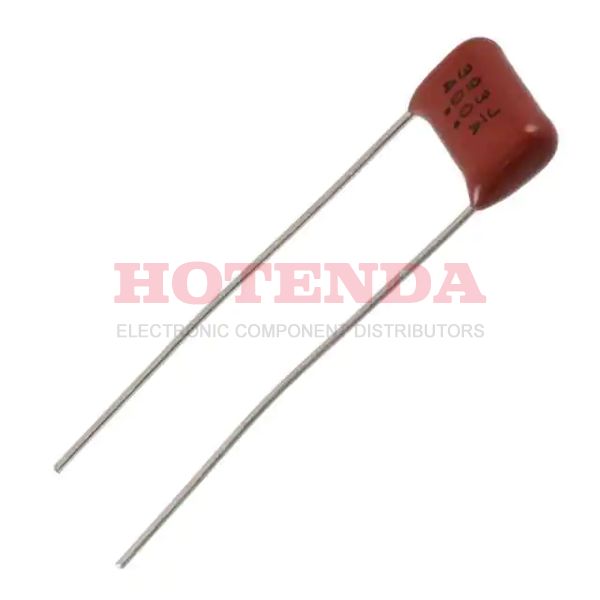

  • ECQ-E4393JF - ECQ-E(F) 0.039μF Film Capacitor ±5% Radial PC Pins 400V-DC Polyester, Metallized Through Hole
  • ECQ-E4393JF - ECQ-E(F) 0.039μF Film Capacitor ±5% Radial PC Pins 400V-DC Polyester, Metallized Through Hole

ECQ-E4393JF

ECQ-E4393JF

Panasonic Electronic Components

ECQ-E(F) 0.039μF Film Capacitor ±5% Radial PC Pins 400V-DC Polyester, Metallized Through Hole

SOT-23

ECQ-E4393JF Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~105°C
PackagingBulk
Published 2012
Series ECQ-E(F)
Size / Dimension 0.472Lx0.193W 12.00mmx4.90mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Voltage - Rated 400V
HTS Code8532.25.00.70
Capacitance 0.039μF
Voltage - Rated DC 400V
Packing Method AMMO PACK
Depth 4.9mm
Lead Pitch 10mm
Capacitor Type FILM CAPACITOR
Dielectric PET
Lead Spacing0.394 10.00mm
Lead Diameter 600 μm
Height 8mm
Height Seated (Max) 0.354 9.00mm
Radiation HardeningNo
REACH SVHC Unknown
RoHS StatusROHS3 Compliant
In-Stock:12443 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.215596$0.215596
10$0.203391$2.03391
100$0.191879$19.1879
500$0.181018$90.509
1000$0.170772$170.772

ECQ-E4393JF Product Details

ECQ-E4393JF Overview


There is 0.394 10.00mm lead spacing on this electrical device.Temperatures of -40°C~105°C are suitable for operating the device.

ECQ-E4393JF Features



ECQ-E4393JF Applications


There are a lot of Panasonic Electronic Components ECQ-E4393JF applications of film capacitors.

  • Coupling, decoupling
  • Test and measuring equipment
  • Battery management system
  • Lighting
  • TV and monitor sets
  • Blocking
  • RF Modules
  • Global positioning systems
  • Mobile communications
  • Matching networks
