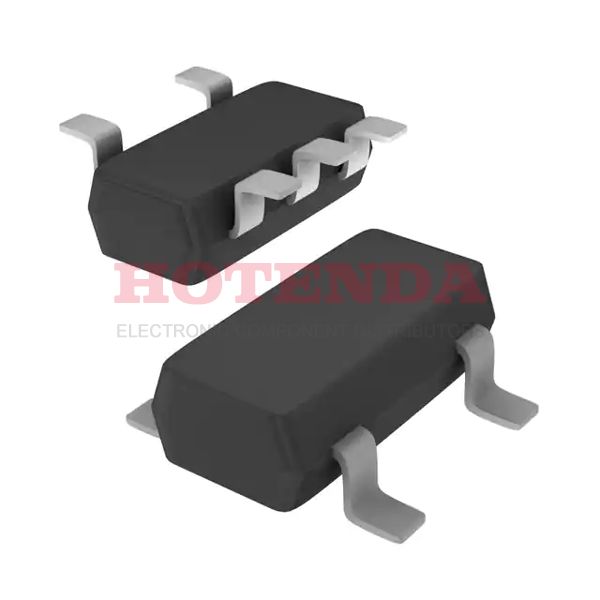

74AHC1G02GV-Q100H Overview
The part is convenient to ship overseas because it is packed in a SC-74A, SOT-753. The advanced packaging method Tape & Reel (TR) provides high reliability. A NOR Gate logic principle governs its operation. Voltage 2V~5.5V is needed to ensure the part's full functionality. Operational temperature extended around -40°C~125°C. Mounted in Surface Mount. Output current is 8mA 8mA in the high and low states. 74AHC is the series it belongs to. The total number of terminations is 5. There are 1 functions that significantly improve the user experience. As part of AHC/VHC/H/U/V, this chip is used. Try searching with 74AHC1G02 to find device variants. A total of 5 pins are injected into the body of the part. Logic devices with Surface Mount mounting are widely used in many applications. Inputs are limited to 2. Quiescent parts have 1μA current flowing through them. The device consists of 1 circuits. To supply the device, it requires a voltage of 2V. Vsup reaches its maximum value at 5.5V.
74AHC1G02GV-Q100H Features
NOR Gate Logic Type
Operating Temperature: -40°C~125°C
AHC/VHC/H/U/V Family
Quiescent Current: 1μA
74AHC1G02GV-Q100H Applications
There are a lot of Nexperia USA Inc.
74AHC1G02GV-Q100H Gates and Inverters applications.
- Electric grinding wheel
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
