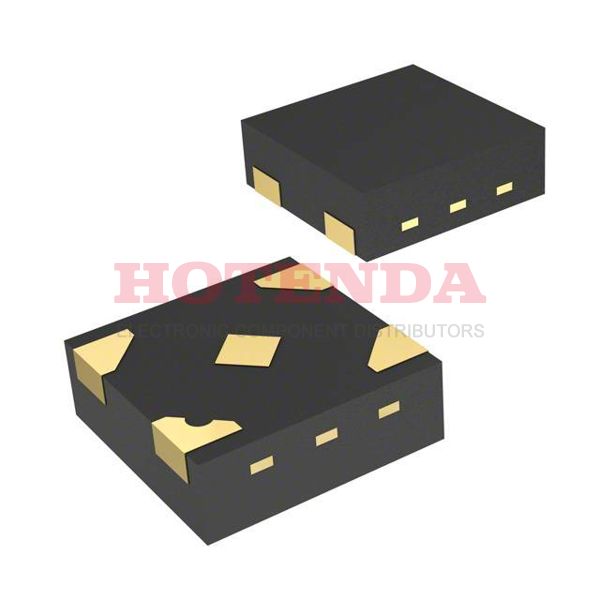

74LVC1G08GX,125 Overview
As the part is packed in 4-XFDFN Exposed Pad, international shipping is convenient. A high level of reliability can be achieved through the use of an advanced packaging method Tape & Reel (TR). This logic works according to the AND Gate principle. Ensure the part's full functionality by setting the voltage to 1.65V~5.5V. Operating temperature extended to -40°C~125°C. It is mounted in position Surface Mount. 32mA 32mA is the output current's high and low states. 74LVC is its series number. Total terminations are 5. Users will benefit significantly from 1 functions in this part. There is a chip like this in LVC/LCX/Z. Trying searching with 74LVC1G08 will yield device variants. The part body receives 5 pins. The logic device can be mounted on the Surface Mount axis and is used in a wide range of applications. Datasheets for 5 pin functions are available upon request. Inputs for the part are set to 2. Quiescent parts carry 200μA current. There are 1 circuits in this device. Standby current is 4μA.
74LVC1G08GX,125 Features
AND Gate Logic Type
Operating Temperature: -40°C~125°C
LVC/LCX/Z Family
Quiescent Current: 200μA
74LVC1G08GX,125 Applications
There are a lot of Nexperia USA Inc.
74LVC1G08GX,125 Gates and Inverters applications.
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
- Fan
