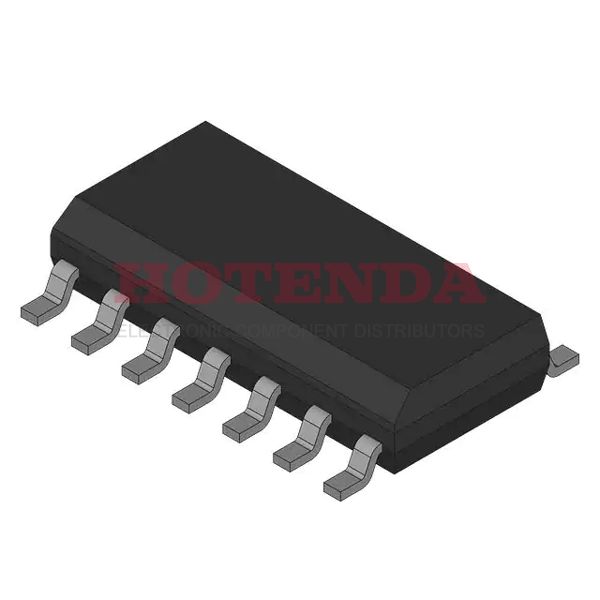

74ALVC04D,112 Overview
The part can be shipped overseas conveniently because it is packaged in 14-SOIC (0.154, 3.90mm Width). In order to provide high reliability, an advanced packaging method Tube is used. As a result, it works on the principle of Inverter. The part must have a voltage of 1.65V~3.6V in order to function properly. Operating temperature around -40°C~85°C extended. Surface Mount is the mounting position of the part. In the low and high states of output current, the current is 24mA 24mA. This is part of the 74ALVC series. In total, there are 14 terminations. 6 functions in the part enhance the user experience significantly. The chip is part of the ALVC/VCX/A family. Use 74ALVC04 to search for device variants. There are 14 pins injected into the part body. Many applications use this logic device with Surface Mount mounting. The functions of 14 pins can be found in the datasheets. When the part is quiescent, 20μA current flows through it. A total of 6 circuits make up this device. It is specified that the operating supply voltage for the chip will be 3.3V volts.
74ALVC04D,112 Features
Inverter Logic Type
Operating Temperature: -40°C~85°C
ALVC/VCX/A Family
Quiescent Current: 20μA
74ALVC04D,112 Applications
There are a lot of Nexperia USA Inc.
74ALVC04D,112 Gates and Inverters applications.
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
