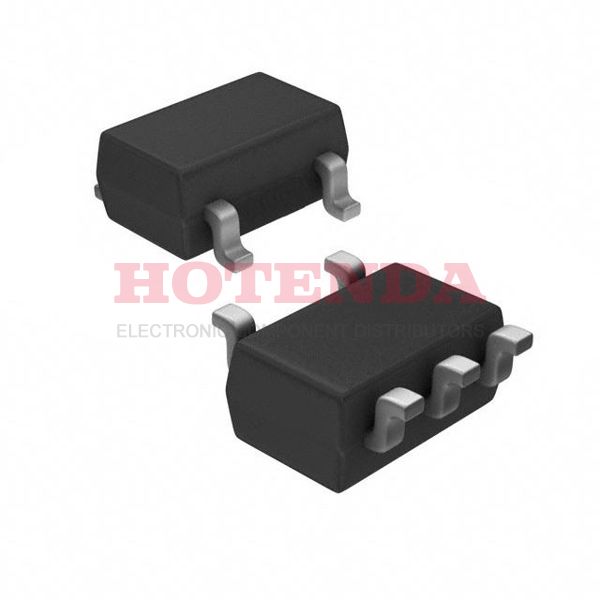

TC7SET02F,LJ(CT Overview
Packed in SC-74A, SOT-753, the part is convenient for shipping overseas. Advanced packaging method Tape & Reel (TR) is used to provide high reliability. It works based on the NOR Gate logic principle. To ensure the part's full function, a voltage of 4.5V~5.5V is needed. Extended operating temperature around -40°C~85°C. The part is mounted in Surface Mount. The high and low state of output current is 8mA 8mA. It comes from the TC7SET series. Surface Mount mounted, this logic device is widely used in many applications. The part supports 2 inputs. In the quiescent state, the part has 2μA current flowing through it. This device is composed of 1 circuits.
TC7SET02F,LJ(CT Features
NOR Gate Logic Type
Operating Temperature: -40°C~85°C
Quiescent Current: 2μA
TC7SET02F,LJ(CT Applications
There are a lot of Toshiba Semiconductor and Storage
TC7SET02F,LJ(CT Gates and Inverters applications.
- Air conditioner
- Home theater
- Electric grinding wheel
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
