C276CAA5100AV0J

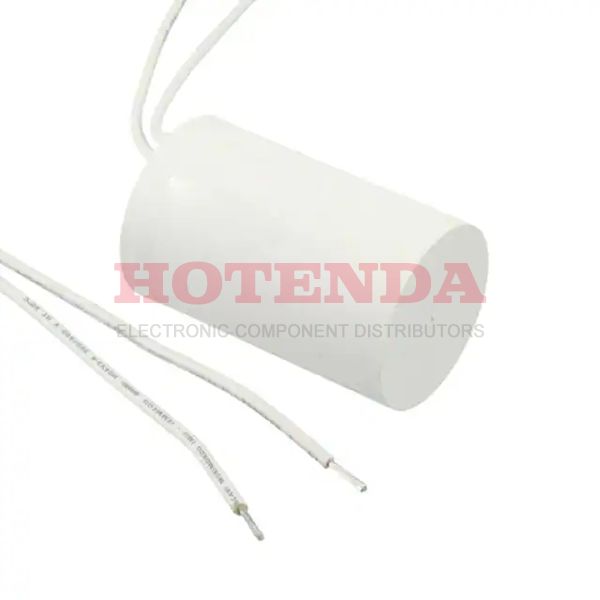

  • C276CAA5100AV0J - C276 10μF Film Capacitor ±5% Radial, Can Wire Leads 470V-AC Polypropylene (PP) Chassis Mount
  • C276CAA5100AV0J - C276 10μF Film Capacitor ±5% Radial, Can Wire Leads 470V-AC Polypropylene (PP) Chassis Mount

C276CAA5100AV0J

C276CAA5100AV0J

KEMET

C276 10μF Film Capacitor ±5% Radial, Can Wire Leads 470V-AC Polypropylene (PP) Chassis Mount

SOT-23

C276CAA5100AV0J Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 26 Weeks
Mount Chassis Mount
Mounting Type Chassis, Stud Mount
Package / Case Radial, Can
Dielectric MaterialPolypropylene (PP)
Operating Temperature-25°C~85°C
PackagingBulk
Published 2015
Series C276
Size / Dimension 1.378Dia 35.00mm
Tolerance ±5%
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire Leads
Applications Motor Run; Motor Start
Capacitance 10μF
Voltage - Rated AC 470V
Height Seated (Max) 2.244 57.00mm
RoHS StatusROHS3 Compliant
In-Stock:1183 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$5.126875$5.126875
10$4.836674$48.36674
100$4.562900$456.29
500$4.304622$2152.311
1000$4.060965$4060.965

C276CAA5100AV0J Product Details

C276CAA5100AV0J Overview


Temperatures of -25°C~85°C are suitable for operating the device.

C276CAA5100AV0J Features



C276CAA5100AV0J Applications


There are a lot of KEMET C276CAA5100AV0J applications of film capacitors.

  • IGBT
  • VCO's
  • Mobile communications
  • Snubbering
  • Lighting
  • RF Modules
  • Filtering
  • Bypassing
  • Filters
  • Switch-mode power supplies
