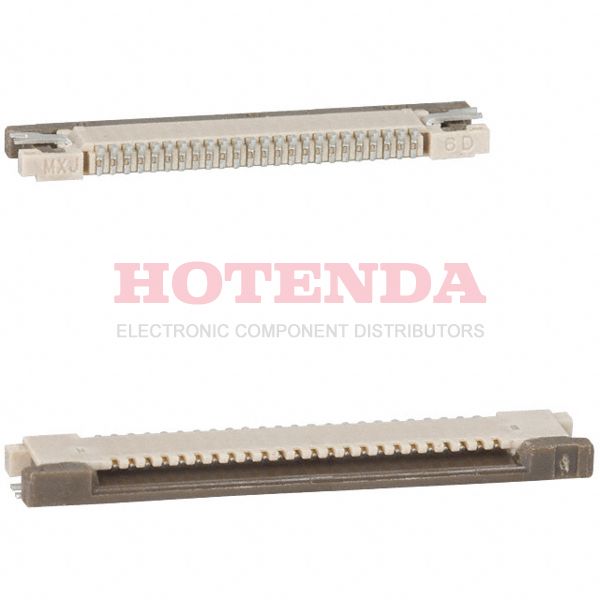

Name: 0545502419
Brand: Molex
SKU: 0545502419
Availability: InStock

new-10%

0545502419

Manufacturer part number:0545502419

Manufacturer:Molex

Description:0545502419 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0545502419 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Polyphenylene Sulfide (PPS)
Operating Temperature	-20°C~85°C
Packaging	Bulk
Series	Easy-On 54550
JESD-609 Code	e6
Feature	Solder Retention, Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	FFC/FPC CONNECTOR
Number of Positions	24
Number of Rows	1
Voltage - Rated	50V
Additional Feature	ZIF
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Total Number of Contacts	24
Contact Finish	Tin Bismuth
Contact Gender	FEMALE
UL Flammability Code	94V-0
Mating Cycles	20
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Top
Cable End Type	Straight, Tapered
Locking Feature	Slide Lock
Contact Finish Thickness	8.00μin 0.203μm
Height Above Board	0.047 1.20mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0545502419 Product Details

0545502419 Overview

You'll get FFC/FPC CONNECTOR packages.There is a mounting type of Surface Mount, Right Angle for this device.An Bulk case is utilized for packaging the product.The product is a member of the Easy-On 54550 Series.There are also features like ZIF, just to name a few.This feature renders it more powerful in a number of ways because of its Solder Retention, Zero Insertion Force (ZIF) feature.In this case, the device operates at -20°C~85°C Operating Temperature.
