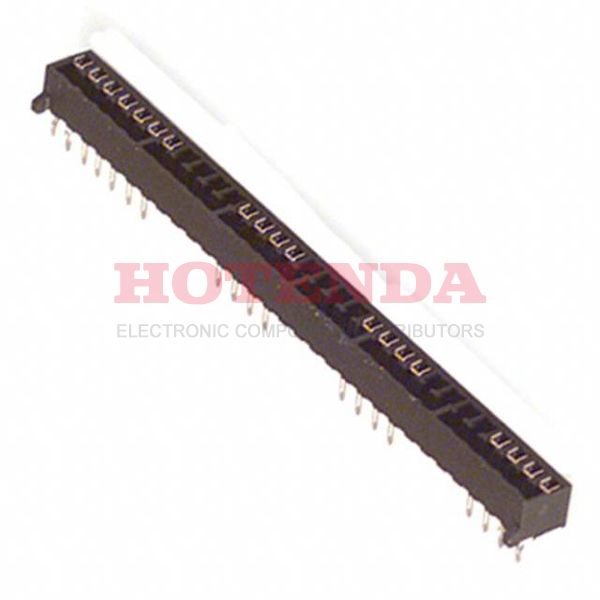

Name: DF10-31S-2DSA(62)
Brand: Hirose Electric Co Ltd
SKU: DF10-31S-2DSA(62)
Availability: InStock

new-10%

DF10-31S-2DSA(62)

Manufacturer part number:DF10-31S-2DSA(62)

Manufacturer:Hirose Electric Co Ltd

Description:DF10-31S-2DSA(62) datasheet pdf and Rectangular Connectors - Headers, Receptacles, Female Sockets product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:DF10-31S-2DSA(62) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polyamide (PA), Nylon
Housing Material	Polyamide
Operating Temperature	-30°C~85°C
Packaging	Bulk
Published	2006
Series	DF10
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Kinked Pin, Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	31
Number of Rows	1
Gender	Female
Voltage - Rated	250VAC
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Orientation	Straight
Depth	5.5mm
Insulation Height	0.157 4.00mm
Number of Positions Loaded	All
Reach Compliance Code	unknown
Current Rating	300mA
Pitch - Mating	0.079 2.00mm
Contact Length - Post	0.110 2.79mm
Contact Finish - Post	Tin
UL Flammability Code	94V-0
Housing Color	Black
Contact Resistance	100mOhm
Max Voltage Rating (AC)	250V
Max Current Rating	2A
Length	62mm
Width	4.5mm
Contact Finish Thickness - Mating	3.90μin 0.099μm
Contact Finish Thickness - Post	39.4μin 1.00μm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Lead Free	Lead Free

DF10-31S-2DSA(62) Product Details

DF10-31S-2DSA(62) Overview

You'll get Receptacle packages.This device has a Through Hole mounting type.Packaging is performed using a Bulk case.It's from the DF10 Series.There's a Through Hole mount on the part.In this case, the device runs at -30°C~85°C Operating Temperature.
