Name: CLT-113-02-F-D-TR
Brand: Samtec Inc.
SKU: CLT-113-02-F-D-TR
Availability: InStock

new-10%

CLT-113-02-F-D-TR

Manufacturer part number:CLT-113-02-F-D-TR

Manufacturer:Samtec Inc.

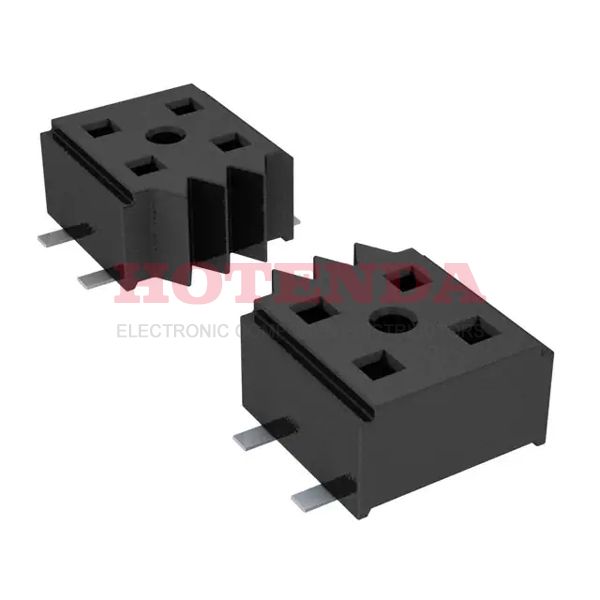

Description:2 RowsReceptacleSolderPhosphor BronzeSurface MountTape & Reel (TR)GoldLiquid Crystal Polymer (LCP)26 PositionsFemale Socket

Case Package:SOT-23

Datasheet:CLT-113-02-F-D-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Polymer
Mounting Option 1	LOCKING
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	CLT
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	26
Number of Rows	2
Gender	Female
Additional Feature	E.L.P., LOW PROFILE, TIGER CLAW CONTACT
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	4.1A per Contact
Total Number of Contacts	26
Orientation	Straight
Depth	5.16mm
Insulation Height	0.083 2.10mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Row Spacing - Mating	0.079 (2.00mm)
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.157 inch
Contact Resistance	10mOhm
Mating Contact Pitch	0.079 inch
Max Current Rating	3.3A
PCB Contact Row Spacing	4.064 mm
Insertion Force-Max	.5004 N
Withdrawl Force-Min	.1668 N
Length	26mm
Plating Thickness	FLASH inch
Contact Finish Thickness - Mating	3.00μin 0.076μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

CLT-113-02-F-D-TR Product Details

CLT-113-02-F-D-TR Overview

The product comes in a package of Receptacle.Surface Mount indicates that the device is mounted.Packaging is performed using a Tape & Reel (TR) case.The product is a part of the CLT Series.Other features include E.L.P., LOW PROFILE, TIGER CLAW CONTACT, to name just a few.-55°C~125°C Operating Temperature is the default operating temperature for the device.
