Name: PPPC152LJBN
Brand: Sullins Connector Solutions
SKU: PPPC152LJBN
Availability: InStock

new-10%

PPPC152LJBN

Manufacturer part number:PPPC152LJBN

Manufacturer:Sullins Connector Solutions

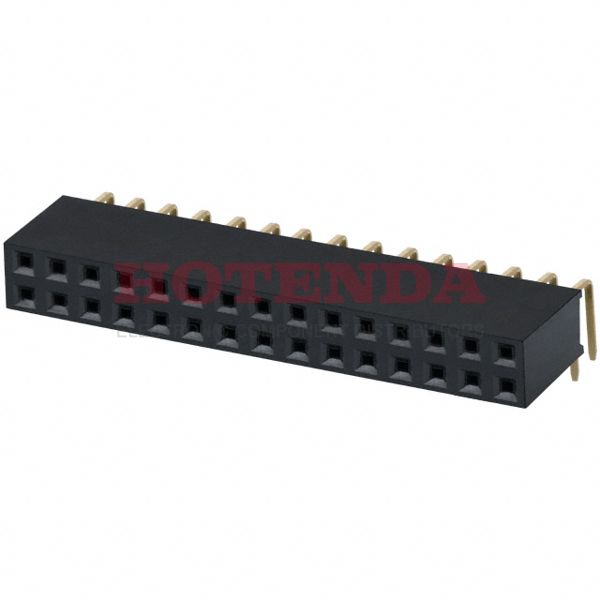

Description:2 Rows Header Solder Phosphor Bronze Through Hole, Right Angle Bulk Gold Polyester 30 Positions Female Socket

Case Package:SOT-23

Datasheet:PPPC152LJBN Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Polyester
Housing Material	Plastic
Operating Temperature	-40°C~105°C
Packaging	Bulk
Published	2005
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Solder
Connector Type	Header
Number of Positions	30
Number of Rows	2
Voltage - Rated	250V
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	3A
Insulation Height	0.200 5.08mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.124 3.15mm
Number Of PCB Rows	2
PCB Contact Pattern	RECTANGULAR
Housing Color	Black
Body Depth	0.498 inch
Insulation Resistance	5000000000Ohm
Mating Contact Pitch	0.1 inch
Polarization Key	POLARIZED HOUSING
Dielectric Withstanding Voltage	500VAC V
Height	5mm
Length	38.6mm
Width	8.5mm
Contact Finish Thickness - Mating	Flash
Material Flammability Rating	UL94 V-0
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

PPPC152LJBN Product Details

PPPC152LJBN Overview

This product is packaged in a Header box.Through Hole, Right Angle indicates that the device is mounted.An Bulk case is utilized for packaging the product.By Through Hole, the part is mounted.Operating temperature is set to -40°C~105°C.
