Name: SSA-108-W-G-RA
Brand: Samtec Inc.
SKU: SSA-108-W-G-RA
Availability: InStock

new-10%

SSA-108-W-G-RA

Manufacturer part number:SSA-108-W-G-RA

Manufacturer:Samtec Inc.

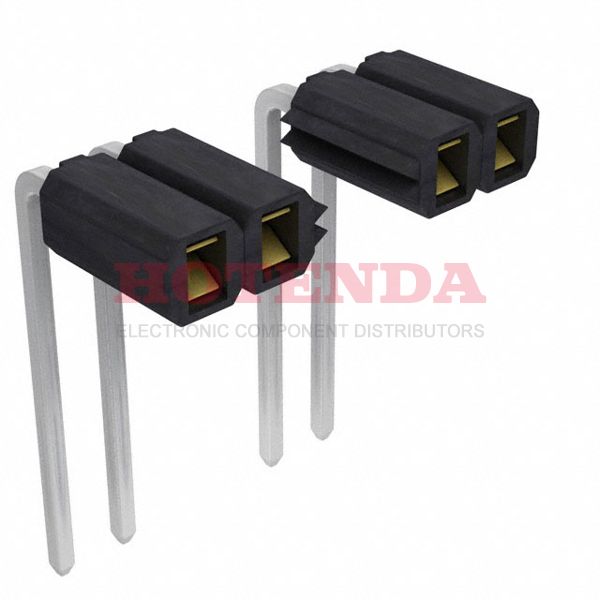

Description:1 Rows Receptacle, Breakaway Wire Wrap Phosphor Bronze Through Hole, Right Angle Bulk Gold Polyethylene Terephthalate (PET), Polyester 8 Positions Female Socket

Case Package:SOT-23

Datasheet:SSA-108-W-G-RA Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Polyethylene Terephthalate (PET), Polyester
Housing Material	Polyethylene
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2003
Series	SSA
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Wire Wrap
ECCN Code	EAR99
Connector Type	Receptacle, Breakaway
Number of Positions	8
Number of Rows	1
Gender	Female
Voltage - Rated	1000V
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Orientation	Right Angle
Terminal Pitch	2.54mm
Depth	7.37mm
Insulation Height	0.100 2.54mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Contact Length - Post	0.575 14.61mm
Number Of PCB Rows	1
PCB Contact Pattern	RECTANGULAR
Mating Information	MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code	94V-0
Housing Color	Black
Contact Resistance	10mOhm
Insulation Resistance	5000000000Ohm
Max Voltage Rating (AC)	1kV
Max Current Rating	1A
Length	20.32mm
Width	5.46mm
Plating Thickness	30μin
Contact Finish Thickness - Mating	10.0μin 0.25μm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

SSA-108-W-G-RA Product Details

SSA-108-W-G-RA Overview

A Receptacle, Breakaway packaging is included.It's mounted Through Hole, Right Angle.We use a Bulk case to package the product.It's from the SSA Series.It's mounted by Through Hole.-55°C~125°C Operating Temperature is what the device runs at.
