Name: A3-50DA-2DS(71)
Brand: Hirose Electric Co Ltd
SKU: A3-50DA-2DS(71)
Price: 8.60000 USD
Availability: InStock

new

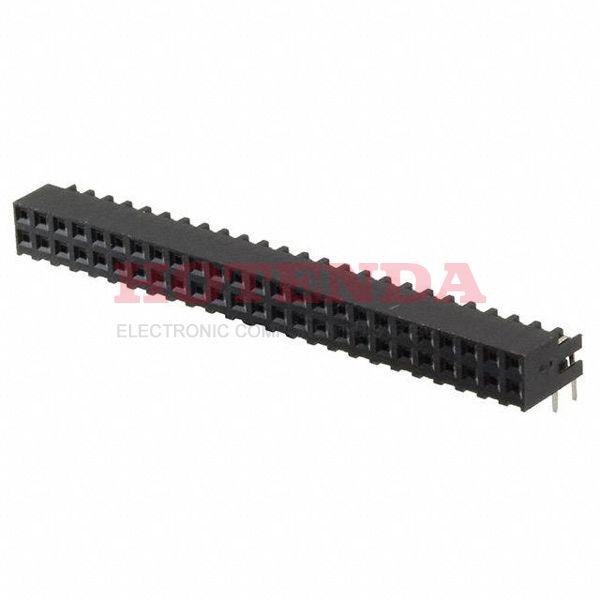

A3-50DA-2DS(71)

Manufacturer part number:A3-50DA-2DS(71)

Manufacturer:Hirose Electric Co Ltd

Description:2 Rows Receptacle Solder Phosphor Bronze Through Hole, Right Angle Tray Gold Polyamide (PA), Nylon 50 Positions Female Socket

Case Package:SOT-23

Datasheet:A3-50DA-2DS(71) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Phosphor Bronze
Contact Plating	Gold
Mounting Type	Through Hole, Right Angle
Number of Pins	50
Contact Shape	Square
Insulation Material	Polyamide (PA), Nylon
Operating Temperature	-55°C~85°C
Packaging	Tray
Series	A3
Published	2008
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	50
Max Operating Temperature	85°C
Min Operating Temperature	-55°C
Applications	General Purpose, Telecommunications
Number of Rows	2
Voltage - Rated	200VAC
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	1A
Pitch	2mm
Orientation	Right Angle
Depth	7.3mm
Insulation Height	0.183 4.65mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Row Spacing - Mating	0.079 (2.00mm)
Contact Length - Post	0.098 2.50mm
Contact Finish - Post	Tin
Housing Color	Black
Contact Resistance	15mOhm
Max Voltage Rating (AC)	200V
Max Current Rating	1A
Length	50mm
Contact Finish Thickness - Mating	8.00μin 0.203μm
Contact Finish Thickness - Post	39.4μin 1.00μm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Lead Free	Lead Free

A3-50DA-2DS(71) Product Details

A3-50DA-2DS(71) Overview

The product comes in a package of Receptacle.Through Hole, Right Angle is the type of mounting for the device.To package the product, a Tray case is used.The product is a member of the A3 Series.50 pins are present on the device.Use it when the temperature is below 85°C.Temperatures below -55°C are required for this device to operate.The device may be used for the following applications: General Purpose, Telecommunications.It operates at an operating temperature of -55°C~85°C.
