Name: M20-7880946
Brand: Harwin Inc.
SKU: M20-7880946
Price: 1.51000 USD
Availability: InStock

new-10%

M20-7880946

Manufacturer part number:M20-7880946

Manufacturer:Harwin Inc.

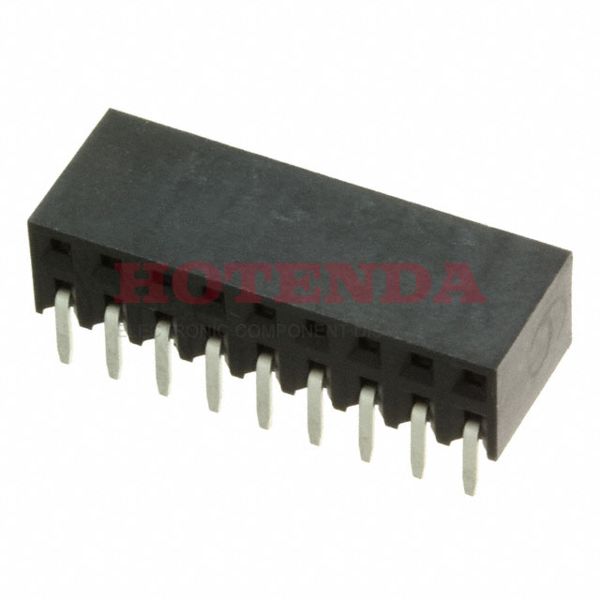

Description:2 RowsReceptacleSolderPhosphor BronzeThrough Hole, Right AngleTubeTinPolyamide (PA6T), Nylon 6T18 PositionsFemale Socket

Case Package:SOT-23

Datasheet:M20-7880946 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Polyamide (PA6T), Nylon 6T
Operating Temperature	-40°C~105°C
Packaging	Tube
Published	2012
Series	M20
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	18
Applications	General Purpose, Industrial, Telecommunications
Number of Rows	2
Voltage - Rated	1000V
Additional Feature	ROHS COMPLIANT
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Current Rating (Amps)	3A
Insulation Height	0.232 5.90mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Body Length or Diameter	0.9 inch
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.118 3.00mm
Number Of PCB Rows	2
PCB Contact Pattern	RECTANGULAR
Contact Gender	Female
UL Flammability Code	94V-0
Body Depth	0.319 inch
Insulation Resistance	1000000000Ohm
Mating Contact Pitch	0.1 inch
PCB Contact Row Spacing	7.874 mm
Durability	300 Cycles
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

M20-7880946 Product Details

M20-7880946 Overview

A Receptacle package is included with it.Its mounting type is Through Hole, Right Angle.Packaging is performed using a Tube case.It is part of the M20 Series of products.Additionally, there are other features, such as ROHS COMPLIANT.It is possible for the device to be used for the application General Purpose, Industrial, Telecommunications.Through Hole mounts the part.There is no operating temperature for the device.
