FOLC-135-04-S-Q-LC

FOLC-135-04-S-Q-LC

FOLC-135-04-S-Q-LC

Samtec Inc.

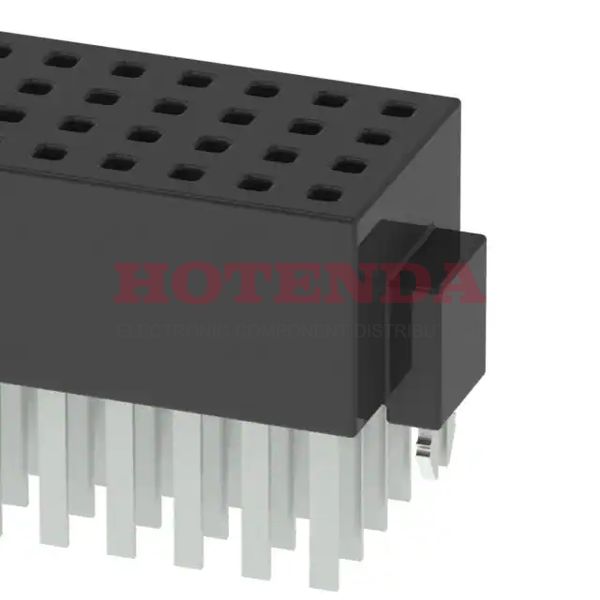

4 Rows Receptacle Solder Beryllium Copper Through Hole Tube Gold Liquid Crystal Polymer (LCP) 140 Positions Female Socket

SOT-23

FOLC-135-04-S-Q-LC Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact MaterialBeryllium Copper
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Operating Temperature-55°C~125°C
PackagingTube
Series FOURRAY™ FOLC
JESD-609 Code e3
Feature Board Lock
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 140
Number of Rows 4
Gender Female
Additional FeatureHIGH RELIABILITY TIGER EYE CONTACT
Fastening TypePush-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 2.6A per Contact
Terminal Pitch1.27mm
Insulation Height 0.180 4.57mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 1.85 inch
Row Spacing - Mating 0.050 (1.27mm)
Contact Length - Post 0.120 3.05mm
Number Of PCB Rows 4
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Body Breadth 0.22 inch
Body Depth 0.18 inch
Contact Resistance 15mOhm
Mating Contact Pitch 0.05 inch
PCB Contact Row Spacing 1.27 mm
Durability 100 Cycles
Insertion Force-Max 1.39 N
Withdrawl Force-Min 1.112 N
Plating Thickness 30μin
Contact Finish Thickness - Mating 30.0μin 0.76μm
Length - Termination 0.12 inch
Material Flammability Rating UL94 V-0
Radiation HardeningNo
RoHS StatusROHS3 Compliant
In-Stock:182 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$26.66000$26.66
10$25.70400$257.04
100$23.80000$2380

FOLC-135-04-S-Q-LC Product Details

FOLC-135-04-S-Q-LC Overview


Packaging is in the form of Receptacle.This device has a Through Hole mounting type.An orange Tube case is used to package the product.Specifically, it is one of the products in the FOURRAY™ FOLC Series.Other features include HIGH RELIABILITY TIGER EYE CONTACT, to name just a few.Several benefits come from the Board Lock feature.There is a mounting hole at Through Hole.Devices operate at -55°C~125°C operating temperatures.

FOLC-135-04-S-Q-LC Features


FOURRAY™ FOLC series


FOLC-135-04-S-Q-LC Applications


There are a lot of Samtec Inc.
FOLC-135-04-S-Q-LC Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
