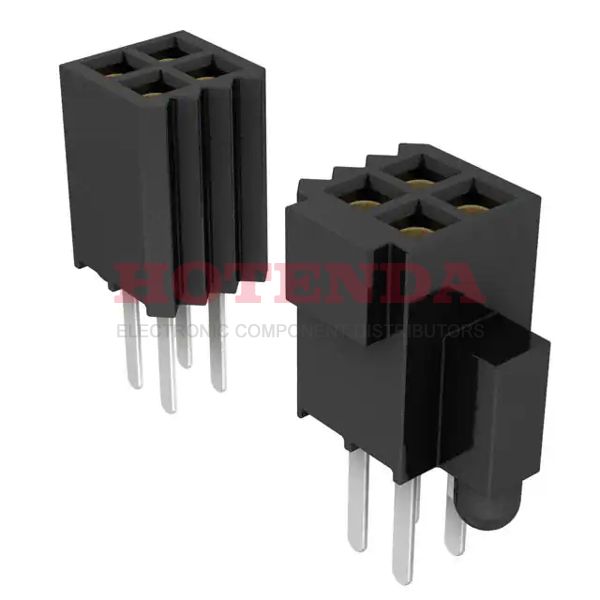

Name: SFM-125-01-S-D-A
Brand: Samtec Inc.
SKU: SFM-125-01-S-D-A
Price: 17.88000 USD
Availability: InStock

new

SFM-125-01-S-D-A

Manufacturer part number:SFM-125-01-S-D-A

Manufacturer:Samtec Inc.

Description:2 Rows Receptacle Solder Beryllium Copper Through Hole Tube Gold Liquid Crystal Polymer (LCP) 50 Positions Female Socket

Case Package:SOT-23

Datasheet:SFM-125-01-S-D-A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Beryllium Copper
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Polymer
Mounting Option 1	LOCKING
Operating Temperature	-55°C~125°C
Packaging	Tube
Published	2013
Series	Tiger Eye™ SFM
JESD-609 Code	e3
Feature	Board Guide
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	50
Number of Rows	2
Voltage - Rated	250VAC
Additional Feature	TIGER EYE CONTACT
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.2A per Contact
Orientation	Straight
Depth	3.68mm
Insulation Height	0.180 4.57mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Row Spacing - Mating	0.050 (1.27mm)
Contact Length - Post	0.120 3.05mm
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.145 inch
Contact Resistance	15mOhm
Mating Contact Pitch	0.05 inch
Max Voltage Rating (AC)	250V
Polarization Key	POLARIZED HOUSING
Durability	10000 Cycles
Insertion Force-Max	.695 N
Withdrawl Force-Min	.556 N
Length	34.92mm
Plating Thickness	30μin
Contact Finish Thickness - Mating	30.0μin 0.76μm
Stack Height (Mating)	6.02mm 6.17mm 7.80mm 7.95mm 9.58mm 9.73mm 11.48mm 11.63mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

SFM-125-01-S-D-A Product Details

SFM-125-01-S-D-A Overview

It comes in Receptacle packaging.The device's mounting type is Through Hole.In order to package the product, a Tube case is used.It belongs to the Tiger Eye™ SFM Series of products.In addition, there are other features such as TIGER EYE CONTACT, to mention only a few.Its Board Guide feature renders it more powerful in many ways.The device runs in -55°C~125°C Operating Temperature.
