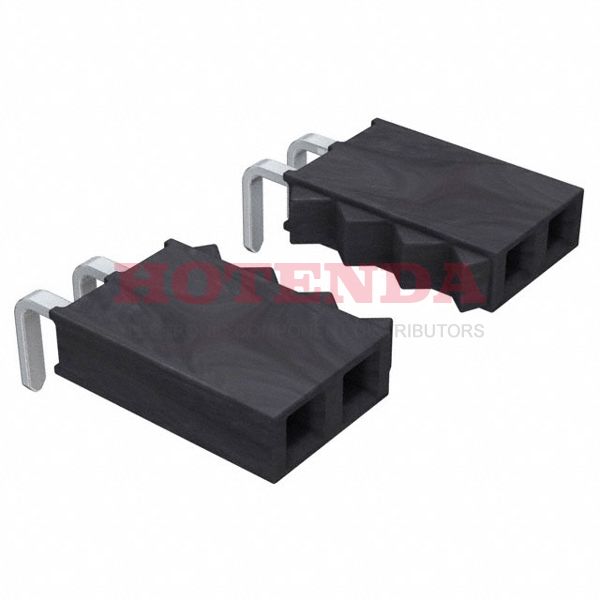

Name: SSW-116-02-T-S-RA
Brand: Samtec Inc.
SKU: SSW-116-02-T-S-RA
Price: 2.84000 USD
Availability: InStock

new-10%

SSW-116-02-T-S-RA

Manufacturer part number:SSW-116-02-T-S-RA

Manufacturer:Samtec Inc.

Description:1 RowsReceptacleSolderPhosphor BronzeThrough Hole, Right AngleBulkTinLiquid Crystal Polymer (LCP)16 PositionsForked

Case Package:SOT-23

Datasheet:SSW-116-02-T-S-RA Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Polymer
Operating Temperature	-55°C~105°C
Packaging	Bulk
Published	2012
Series	SSW
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	16
Number of Rows	1
Additional Feature	TIGER BUY CONTACT
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Voltage - Rated DC	655V
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Forked
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	5.7A per Contact
Orientation	Right Angle
Depth	10.03mm
Insulation Height	0.095 2.41mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Number of Conductors	ONE
Reference Standard	UL, CSA
Voltage - Rated AC	465V
Reliability	COMMERCIAL
Contact Length - Post	0.100 2.54mm
Number Of PCB Rows	1
Lead Pitch	2.54mm
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.095 inch
Contact Gender	FEMALE
UL Flammability Code	94V-0
Housing Color	Black
Lead Length	2.54mm
Contact Resistance	10mOhm
Max Voltage Rating (AC)	550V
Max Current Rating	5.5A
Length	41.15mm
Plating Thickness	200μin
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

SSW-116-02-T-S-RA Product Details

SSW-116-02-T-S-RA Overview

You'll get Receptacle packages.This device has a Through Hole, Right Angle mounting type.It is necessary to use a Bulk case for packaging the product.This product is in the SSW Series.Furthermore, there are other features available, such as TIGER BUY CONTACT, to name a few.In this case, the device runs at -55°C~105°C Operating Temperature.
