160472J630C-F

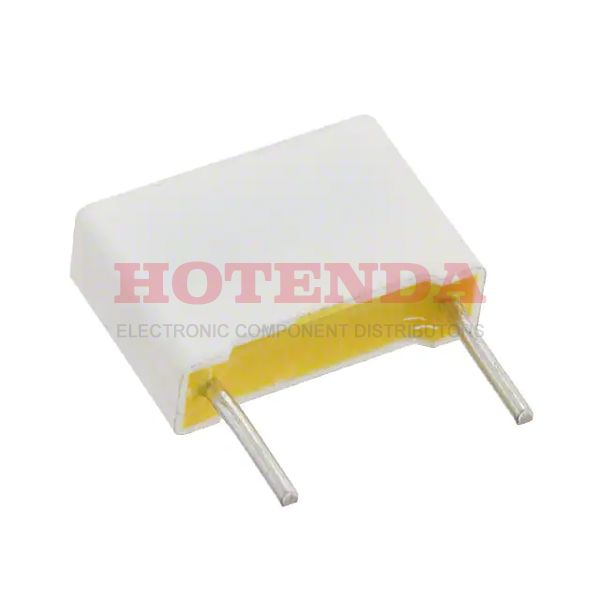

  • 160472J630C-F - 160 4700pF Film Capacitor ±5% Radial PC Pins 630V-DC 220V-AC Polyester, Metallized Through Hole
  • 160472J630C-F - 160 4700pF Film Capacitor ±5% Radial PC Pins 630V-DC 220V-AC Polyester, Metallized Through Hole

160472J630C-F

160472J630C-F

Cornell Dubilier Electronics (CDE)

160 4700pF Film Capacitor ±5% Radial PC Pins 630V-DC 220V-AC Polyester, Metallized Through Hole

SOT-23

160472J630C-F Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester, Metallized
Operating Temperature-55°C~105°C
PackagingBulk
Published 2013
Series 160
Size / Dimension 0.512Lx0.157W 13.00mmx4.00mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Additional FeatureRATED AC VOLTAGE (V): 220
HTS Code8532.25.00.70
Capacitance 4700pF
Voltage - Rated DC 630V
Depth 4mm
Voltage - Rated AC 220V
Lead Pitch 10mm
Capacitor Type FILM CAPACITOR
Dielectric PET
Lead Spacing0.394 10.00mm
Lead Diameter 800 μm
Size Code 5116
Life (Hours) 1000 hours
Height 9.5mm
Height Seated (Max) 0.374 9.50mm
Length 13mm
REACH SVHC Unknown
RoHS StatusROHS3 Compliant
In-Stock:15517 items

Pricing & Ordering

QuantityUnit PriceExt. Price

160472J630C-F Product Details

160472J630C-F Overview


Lead spacing is 0.394 10.00mm for this electrical device.Devices with a -55°C~105°C temperature capability can be operated.

160472J630C-F Features




160472J630C-F Applications


There are a lot of Cornell Dubilier Electronics (CDE)
160472J630C-F applications of film capacitors.


  • Test and measuring equipment
  • RF Modules
  • Mobile communications
  • Satellite TV
  • Global positioning systems
  • Filters
  • VCO's
  • Matching networks
  • Snubbering
  • Filtering
