R71MW5220AA00K

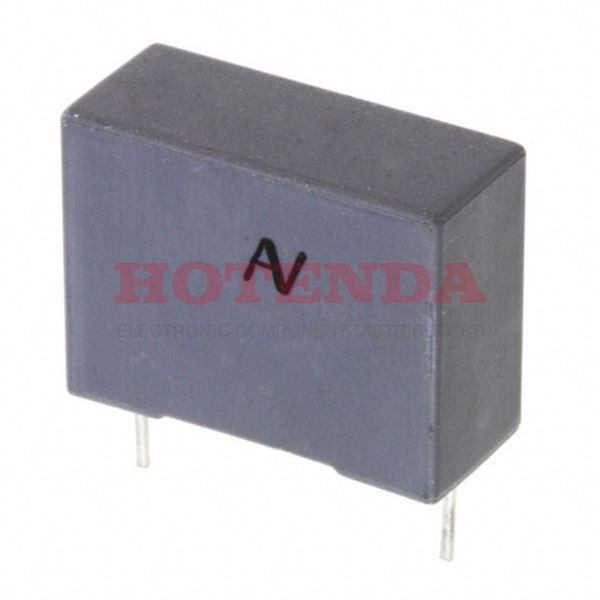

  • R71MW5220AA00K - R71 22μF Film Capacitor ±10% Radial PC Pins 420V-DC 220V-AC Polypropylene (PP), Metallized Through Hole
  • R71MW5220AA00K - R71 22μF Film Capacitor ±10% Radial PC Pins 420V-DC 220V-AC Polypropylene (PP), Metallized Through Hole

R71MW5220AA00K

R71MW5220AA00K

KEMET

R71 22μF Film Capacitor ±10% Radial PC Pins 420V-DC 220V-AC Polypropylene (PP), Metallized Through Hole

SOT-23

R71MW5220AA00K Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 27 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Number of Pins 2
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-40°C~110°C
PackagingBulk
Published 2013
Series R71
Size / Dimension 1.634Lx1.181W 41.50mmx30.00mm
Tolerance ±10%
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Applications High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC)
Capacitance 22μF
Voltage - Rated DC 420V
Terminal Pitch37.5mm
Voltage - Rated AC 220V
Lead Pitch 37.4904mm
Capacitor Type FILM CAPACITOR
Dielectric PP
Lead Spacing1.476 37.50mm
Lead Diameter 1 mm
Lead/Base Style Straight
Height 30mm
Height Seated (Max) 1.776 45.10mm
Length 41.5mm
RoHS StatusROHS3 Compliant
In-Stock:1416 items

Pricing & Ordering

QuantityUnit PriceExt. Price
360$6.26558$2255.6088

R71MW5220AA00K Product Details

R71MW5220AA00K Overview


There is 1.476 37.50mm lead spacing on this electrical device.Temperatures as low as -40°C~110°C are suitable for the device.

R71MW5220AA00K Features



R71MW5220AA00K Applications


There are a lot of KEMET R71MW5220AA00K applications of film capacitors.

  • Test and measuring equipment
  • Mobile communications
  • Industrial and automotive inverters
  • RFI for automotive
  • Global positioning systems
  • Bypassing
  • Satellite TV
  • Battery management system
  • Switch mode power supplies
  • Snubbering
