ECQ-E2223RKF

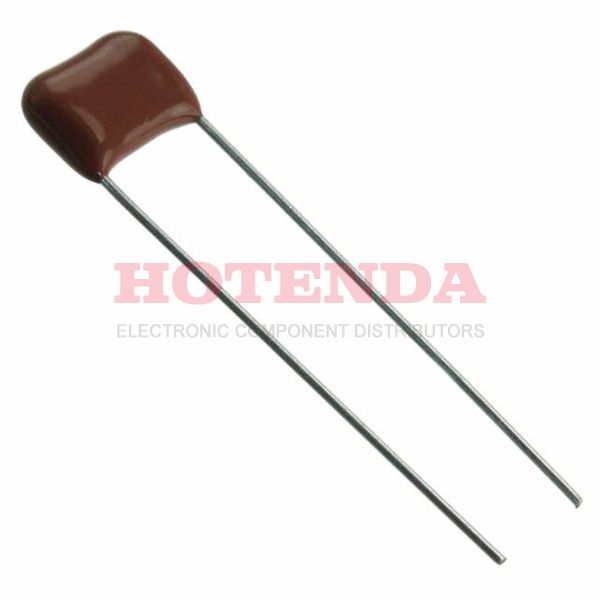

  • ECQ-E2223RKF - ECQ-E(F) 0.022μF Film Capacitor ±10% Radial PC Pins 250V-DC Polyester, Metallized Through Hole
  • ECQ-E2223RKF - ECQ-E(F) 0.022μF Film Capacitor ±10% Radial PC Pins 250V-DC Polyester, Metallized Through Hole

ECQ-E2223RKF

ECQ-E2223RKF

Panasonic Electronic Components

ECQ-E(F) 0.022μF Film Capacitor ±10% Radial PC Pins 250V-DC Polyester, Metallized Through Hole

SOT-23

ECQ-E2223RKF Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~105°C
PackagingTape & Box (TB)
Published 2008
Series ECQ-E(F)
Size / Dimension 0.406Lx0.173W 10.30mmx4.40mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
HTS Code8532.25.00.70
Capacitance 0.022μF
Voltage - Rated DC 250V
Packing Method Ammo Pack
Lead Pitch 7.5mm
Capacitor Type FILM CAPACITOR
Dielectric PET
Lead Spacing0.295 7.50mm
Size Code 4117
Height Seated (Max) 0.492 12.50mm
Length 10.3mm
Width 4.4mm
Radiation HardeningNo
RoHS StatusROHS3 Compliant
In-Stock:61846 items

Pricing & Ordering

QuantityUnit PriceExt. Price

ECQ-E2223RKF Product Details

ECQ-E2223RKF Overview


0.295 7.50mm is the lead spacing of this electrical device.The device is capable of operating at the temperature of -40°C~105°C.

ECQ-E2223RKF Features



ECQ-E2223RKF Applications


There are a lot of Panasonic Electronic Components ECQ-E2223RKF applications of film capacitors.

  • Switch-mode power supplies
  • Coupling, decoupling
  • Blocking
  • RF Modules
  • TV and monitor sets
  • Snubbering
  • Matching networks
  • IGBT
  • Lighting
  • Satellite TV
