MKP2J011001B00JSSD

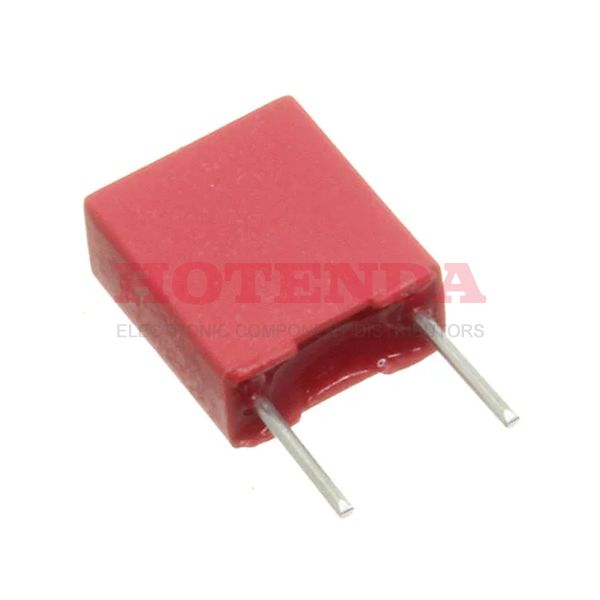

  • MKP2J011001B00JSSD - 1000pF Film Capacitor ±5% Radial PC Pins 630V-DC 250V-AC Polypropylene (PP), Metallized
  • MKP2J011001B00JSSD - 1000pF Film Capacitor ±5% Radial PC Pins 630V-DC 250V-AC Polypropylene (PP), Metallized

MKP2J011001B00JSSD

MKP2J011001B00JSSD

WIMA

1000pF Film Capacitor ±5% Radial PC Pins 630V-DC 250V-AC Polypropylene (PP), Metallized

SOT-23

MKP2J011001B00JSSD Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 11 Weeks
Mounting Type Through Hole
Package / Case Radial
Surface MountNO
Terminal Shape WIRE
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-55°C~100°C
PackagingBulk
Size / Dimension 0.283Lx0.118W 7.20mmx3.00mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications Automotive; High Frequency, Switching
Additional FeatureRATED AC VOLTAGE (V): 250
HTS Code8532.25.00.70
Capacitance 1000pF
Voltage - Rated DC 630V
Depth 3mm
Voltage - Rated AC 250V
Lead Pitch 5mm
Capacitor Type FILM CAPACITOR
Dielectric PP
Lead Spacing0.197 5.00mm
Lead Diameter 500 μm
Size Code 2812
Height 7.5mm
Height Seated (Max) 0.295 7.50mm
Length 7.2mm
RoHS StatusROHS3 Compliant
Ratings AEC-Q200
In-Stock:9797 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.734111$0.734111
10$0.692558$6.92558
100$0.653356$65.3356
500$0.616374$308.187
1000$0.581485$581.485

MKP2J011001B00JSSD Product Details

MKP2J011001B00JSSD Overview


There is 0.197 5.00mm lead spacing on this electrical device.Temperatures of -55°C~100°C allow the device to operate.

MKP2J011001B00JSSD Features



MKP2J011001B00JSSD Applications


There are a lot of WIMA MKP2J011001B00JSSD applications of film capacitors.

  • Snubbering
  • Industrial and automotive inverters
  • Coupling, decoupling
  • Test and measuring equipment
  • TV and monitor sets
  • RFI for automotive
  • Audio/video equipment
  • Filters
  • Battery management system
  • Mobile communications
