ECW-F2105HAB

  • ECW-F2105HAB - ECW-F(A) 1μF Film Capacitor ±3% Radial PC Pins 250V-DC Polypropylene (PP), Metallized Through Hole
  • ECW-F2105HAB - ECW-F(A) 1μF Film Capacitor ±3% Radial PC Pins 250V-DC Polypropylene (PP), Metallized Through Hole

ECW-F2105HAB

ECW-F2105HAB

Panasonic Electronic Components

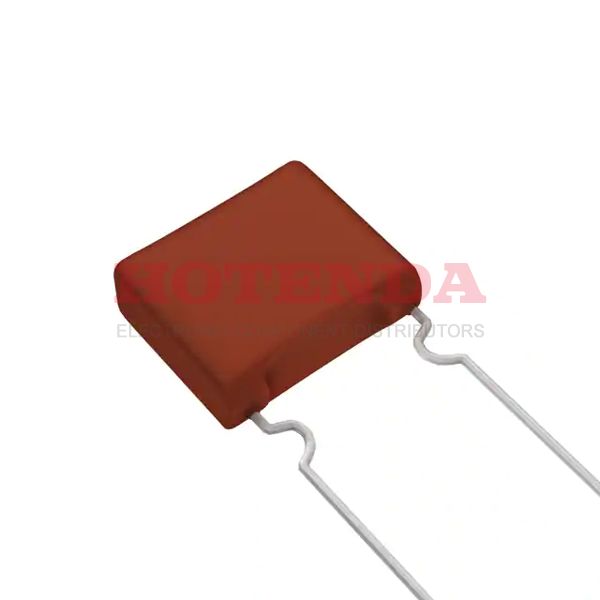

ECW-F(A) 1μF Film Capacitor ±3% Radial PC Pins 250V-DC Polypropylene (PP), Metallized Through Hole

SOT-23

ECW-F2105HAB Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-40°C~105°C
PackagingBulk
Published 2012
Series ECW-F(A)
Size / Dimension 0.713Lx0.335W 18.10mmx8.50mm
Tolerance ±3%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications High Frequency, Switching
HTS Code8532.25.00.70
Capacitance 1μF
Voltage - Rated DC 250V
Packing Method AMMO PACK
Lead Pitch 7.5mm
Capacitor Type FILM CAPACITOR
Dielectric PP
Lead Spacing0.295 7.50mm
Size Code 7133
Height Seated (Max) 0.780 19.80mm
Length 18.1mm
Width 8.5mm
RoHS StatusROHS3 Compliant
In-Stock:7685 items

Pricing & Ordering

QuantityUnit PriceExt. Price
400$0.73260$293.04

ECW-F2105HAB Product Details

ECW-F2105HAB Overview


Electrical devices have 0.295 7.50mm lead spacing.It is capable of operating at -40°C~105°C degrees Celsius.

ECW-F2105HAB Features



ECW-F2105HAB Applications


There are a lot of Panasonic Electronic Components ECW-F2105HAB applications of film capacitors.

  • IGBT
  • Filtering
  • RFI for automotive
  • Compact fluorescent lamps (CFL)
  • Switch-mode power supplies
  • Audio/video equipment
  • Global positioning systems
  • Snubbering
  • VCO's
  • Test and measuring equipment
