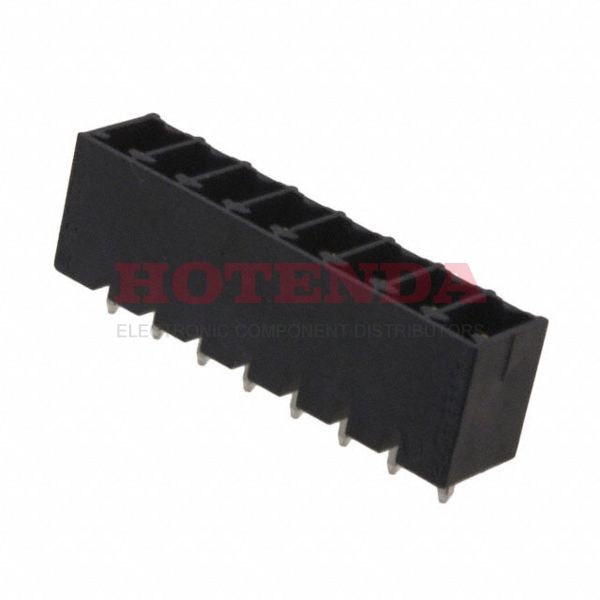

Name: 1863240000
Brand: Weidmüller
SKU: 1863240000
Price: 2.39000 USD
Availability: InStock

new-10%

1863240000

Manufacturer part number:1863240000

Manufacturer:Weidmüller

Description:1863240000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1863240000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature	-50°C~120°C
Packaging	Bulk
Published	2003
Series	Omnimate SC
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Connector Type	PCB, Terminal Block
Type	Header, Male Pins, Shrouded (4 Side)
Color	Black
Number of Rows	1
Gender	Male
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.150 3.81mm
Total Number of Contacts	8
Ingress Protection	IP20
Insulation Height	0.362 9.20mm
Current Rating	17.5A
Termination Style	Solder
Approval Agency	CSA, cURus
UL Flammability Code	94V-0
Voltage	300V
Contact Tail Length	0.126 3.20mm
Number of Levels	1
Current	10A
Number of Poles	8
Contact Mating Finish	Tin
Voltage - IEC	320V
Header Orientation	Vertical
Current - IEC	17.5A
Hole Diameter	1.3 mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1863240000 Product Details

1863240000 Overview

PCB, Terminal Block packaging is included.Mounting type Through Hole is assigned to the device.It has been determined that a Bulk case is necessary to package the product.It belongs to the Omnimate SC Series of products.Through Hole is the mounting point for the part.As a result, the device runs at -50°C~120°C Operating Temperature.It shares many benefts with other Header, Male Pins, Shrouded (4 Side) products.
