Name: 1766929
Brand: Phoenix Contact
SKU: 1766929
Price: 12.17000 USD
Availability: InStock

new

1766929

Manufacturer part number:1766929

Manufacturer:Phoenix Contact

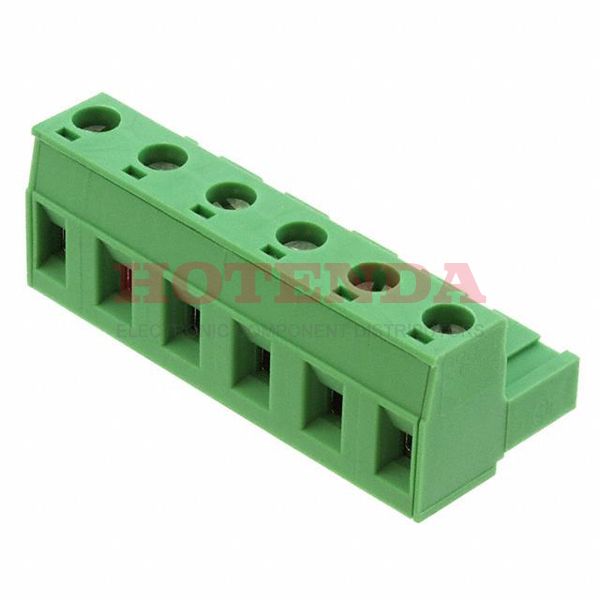

Description:Bulk 0.295 7.50mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON GMSTB Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1766929 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	749.788188g
Packaging	Bulk
Series	COMBICON GMSTB
Published	2011
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	400V
Additional Feature	PA, 94V-0
Pitch	0.295 7.50mm
Orientation	Right Angle
Depth	18.2mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	CB, CSA, UL, VDE
Voltage	300V
Max Supply Voltage	400V
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Poles	6
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	1kV
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	6
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Screw Size	M3
Stripping Length	7mm
Wire Cross Section	2.5 mm2
Height	18.2mm
Length	43mm
Width	18.2mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1766929 Product Details

1766929 Overview

It comes in Screw, Socket packaging.The device's mounting type is Free Hanging (In-Line).In order to package the product, a Bulk case is used.It belongs to the COMBICON GMSTB Series of products.In addition, there are other features such as PA, 94V-0, to mention only a few.Its Retention Latches (Non-Wire Side) feature renders it more powerful in many ways.The part is mounted by Free Hanging, Plug-In.The supply voltage of this chip should not exceed 400V.This part shares lots of benefits with other Plug, Female Sockets products.
