Name: 1842995
Brand: Phoenix Contact
SKU: 1842995
Price: 25.46000 USD
Availability: InStock

new

1842995

Manufacturer part number:1842995

Manufacturer:Phoenix Contact

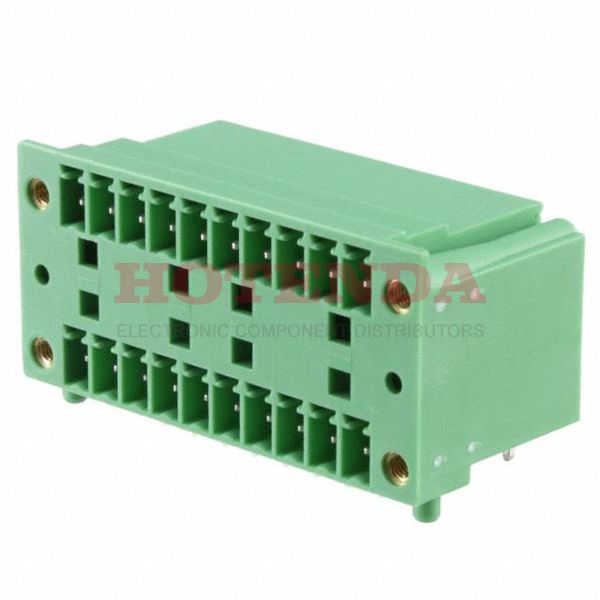

Description:Bulk 0.150 3.81mm Green 2 Levels Through Hole Header, Male Pins, Shrouded (4 Side) COMBICON MCD Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1842995 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	14.710001g
Packaging	Bulk
Series	COMBICON MCD
Published	2010
Feature	Board Guide, Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	20
Color	Green
Number of Rows	1
Voltage - Rated	160V
Additional Feature	PBT, 94V-0
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Insulation Height	0.894 22.71mm
Current Rating	8A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.138 3.50mm
Number of Levels	2
Current	8A
Number of Decks	1
Voltage - IEC	320V
Positions Per Level	10
Number of Ways	10
Safety Approval	UL
Header Orientation	90°, Right Angle
Height	26.2mm
Length	21.9mm
Width	48.49mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1842995 Product Details

1842995 Overview

It comes in Plug packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the COMBICON MCD Series of products.In addition, there are other features such as PBT, 94V-0, to mention only a few.Its Board Guide, Mating Flange feature renders it more powerful in many ways.The part is mounted by Through Hole.This part shares lots of benefits with other Header, Male Pins, Shrouded (4 Side) products.
