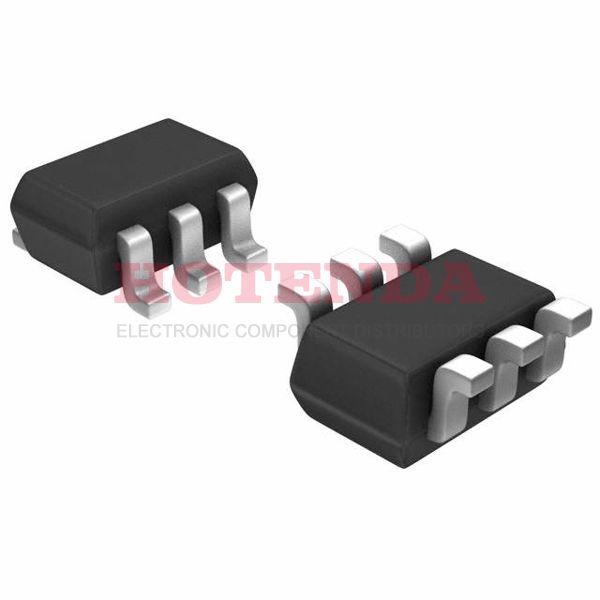

Name: SI1419DH-T1-E3
Brand: Vishay Siliconix
SKU: SI1419DH-T1-E3
Availability: InStock

new-10%

SI1419DH-T1-E3

Manufacturer part number:SI1419DH-T1-E3

Manufacturer:Vishay Siliconix

Description:MOSFET 200V 0.38A 1.56W 5.0 ohms @ 10V

Case Package:SOT-23

Datasheet:SI1419DH-T1-E3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	6-TSSOP, SC-88, SOT-363
Number of Pins	6
Transistor Element Material	SILICON
Operating Temperature	-55°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	2015
Series	TrenchFET®
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	6
ECCN Code	EAR99
Resistance	5MOhm
Terminal Finish	MATTE TIN
Subcategory	Other Transistors
Technology	MOSFET (Metal Oxide)
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
[email protected] Reflow Temperature-Max (s)	40
Pin Count	6
Number of Elements	1
Configuration	SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max	1W Ta
Operating Mode	ENHANCEMENT MODE
Power Dissipation	1W
Turn On Delay Time	6 ns
FET Type	P-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	5 Ω @ 400mA, 10V
Vgs(th) (Max) @ Id	4.5V @ 100μA
Current - Continuous Drain (Id) @ 25°C	300mA Ta
Gate Charge (Qg) (Max) @ Vgs	6.2nC @ 10V
Rise Time	12ns
Drive Voltage (Max Rds On,Min Rds On)	6V 10V
Vgs (Max)	±20V
Fall Time (Typ)	12 ns
Turn-Off Delay Time	12 ns
Continuous Drain Current (ID)	-380mA
Threshold Voltage	-4.5V
Gate to Source Voltage (Vgs)	20V
Drain Current-Max (Abs) (ID)	0.3A
Drain to Source Breakdown Voltage	200V
Nominal Vgs	-4.5 V
Radiation Hardening	No
REACH SVHC	Unknown
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

About SI1419DH-T1-E3

The SI1419DH-T1-E3 from Vishay Siliconix is a high-performance microcontroller designed for a wide range of embedded applications. This component features MOSFET 200V 0.38A 1.56W 5.0 ohms @ 10V.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the SI1419DH-T1-E3, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
