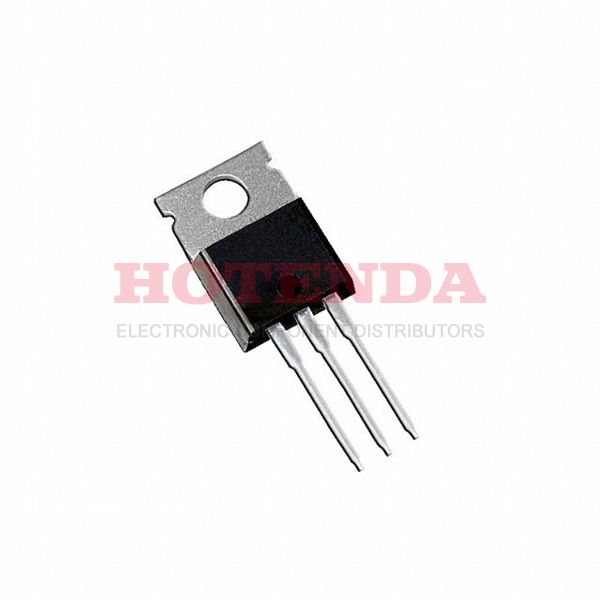

Name: IRFZ44E
Brand: Infineon Technologies
SKU: IRFZ44E
Availability: InStock

new-10%

IRFZ44E

Manufacturer part number:IRFZ44E

Manufacturer:Infineon Technologies

Description:IRFZ44E datasheet pdf and Transistors - FETs, MOSFETs - Single product details from Infineon Technologies stock available on our website

Case Package:SOT-23

Datasheet:IRFZ44E Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Through Hole
Package / Case	TO-220-3
Surface Mount	NO
Transistor Element Material	SILICON
Operating Temperature	-55°C~175°C TJ
Packaging	Tube
Published	1999
Series	HEXFET®
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Additional Feature	AVALANCHE RATED
Technology	MOSFET (Metal Oxide)
Terminal Position	SINGLE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
JESD-30 Code	R-PSFM-T3
Qualification Status	Not Qualified
Number of Elements	1
Configuration	SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max	110W Tc
Operating Mode	ENHANCEMENT MODE
Case Connection	DRAIN
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	23m Ω @ 29A, 10V
Vgs(th) (Max) @ Id	4V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	1360pF @ 25V
Current - Continuous Drain (Id) @ 25°C	48A Tc
Gate Charge (Qg) (Max) @ Vgs	60nC @ 10V
Drain to Source Voltage (Vdss)	60V
Drive Voltage (Max Rds On,Min Rds On)	10V
Vgs (Max)	±20V
JEDEC-95 Code	TO-220AB
Drain Current-Max (Abs) (ID)	48A
Drain-source On Resistance-Max	0.023Ohm
Pulsed Drain Current-Max (IDM)	192A
DS Breakdown Voltage-Min	60V
Avalanche Energy Rating (Eas)	220 mJ
RoHS Status	Non-RoHS Compliant

IRFZ44E Product Details

IRFZ44E Description

Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This

benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, providing the designer with

an extremely efficient and reliable device for use in a wide variety of applications.
