Name: IRF6729MTRPBF
Brand: Infineon Technologies
SKU: IRF6729MTRPBF
Availability: InStock

new-10%

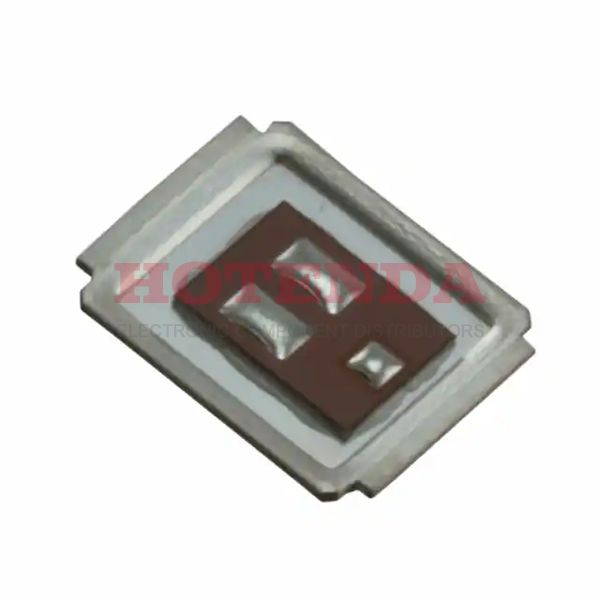

IRF6729MTRPBF

Manufacturer part number:IRF6729MTRPBF

Manufacturer:Infineon Technologies

Description:MOSFET N-CH 30V 31A DIRECTFET

Case Package:SOT-23

Datasheet:IRF6729MTRPBF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	DirectFET™ Isometric MX
Number of Pins	5
Transistor Element Material	SILICON
Operating Temperature	-40°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	2009
Series	HEXFET®
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	MATTE TIN
Subcategory	FET General Purpose Power
Technology	MOSFET (Metal Oxide)
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
[email protected] Reflow Temperature-Max (s)	40
JESD-30 Code	R-PDSO-G3
Number of Elements	1
Configuration	SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max	2.8W Ta 104W Tc
Operating Mode	ENHANCEMENT MODE
Power Dissipation	104W
Case Connection	DRAIN
Turn On Delay Time	22 ns
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	1.8m Ω @ 31A, 10V
Vgs(th) (Max) @ Id	2.35V @ 150μA
Input Capacitance (Ciss) (Max) @ Vds	6030pF @ 15V
Current - Continuous Drain (Id) @ 25°C	31A Ta 190A Tc
Gate Charge (Qg) (Max) @ Vgs	63nC @ 4.5V
Rise Time	37ns
Drive Voltage (Max Rds On,Min Rds On)	4.5V 10V
Vgs (Max)	±20V
Fall Time (Typ)	15 ns
Turn-Off Delay Time	20 ns
Continuous Drain Current (ID)	31mA
Gate to Source Voltage (Vgs)	20V
Drain to Source Breakdown Voltage	30V
Avalanche Energy Rating (Eas)	260 mJ
Height	506μm
Length	6.35mm
Width	5.05mm
Radiation Hardening	No
RoHS Status	RoHS Compliant

About IRF6729MTRPBF

The IRF6729MTRPBF from Infineon Technologies is a high-performance microcontroller designed for a wide range of embedded applications. This component features MOSFET N-CH 30V 31A DIRECTFET.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the IRF6729MTRPBF, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
