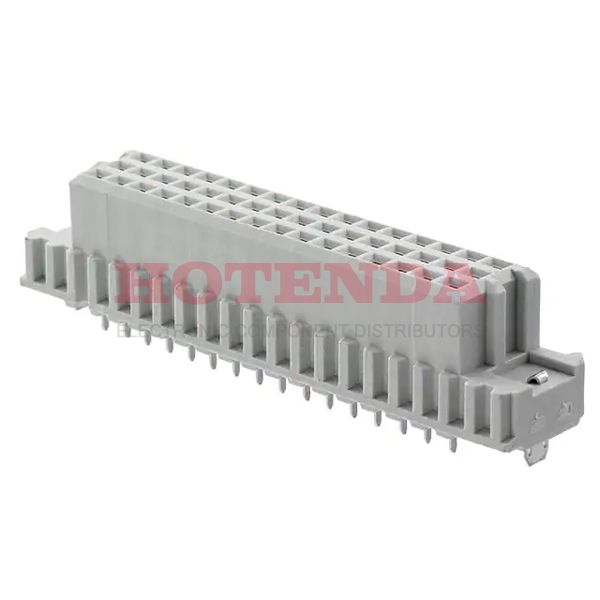

Manufacturer part number:5536397-5

Manufacturer:TE Connectivity AMP Connectors

Description:5536397-5 datasheet pdf and Backplane Connectors - DIN 41612 product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:5536397-5 Datasheet

RoHs Status:non-compliant

Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Factory Lead Time	25 Weeks
Contact Plating	Gold
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polymer
Material - Insulation	Polymer Thermoplastic, Glass Filled
PCB Mounting Orientation	Vertical
Packaging	Bulk
Series	Eurocard
Published	1999
JESD-609 Code	e3
Feature	Board Lock
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle, Female Sockets
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Color	Grey
Number of Rows	3
Gender	Receptacle
MIL Conformance	NO
DIN Conformance	YES
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.100 2.54mm
Total Number of Contacts	48
Depth	10.6mm
Style	C/2 (1/2 C)
Number of Positions Loaded	All
Current Rating	1.5A
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Number Of PCB Rows	3
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.417 inch
Lead Length	2.49mm
Insulation Resistance	1000000000000Ohm
Row Spacing	2.54 mm
ELV	Compliant
Max Voltage Rating (AC)	250V
Max Current Rating	1.5A
Polarization Key	POLARIZED HOUSING
Dielectric Withstanding Voltage	1000VAC V
Sealable	No
Contact Current Rating	1.5A
Circuit Application	Signal
Number of Signal Positions	48
Number of Columns	16
Termination Post Length	2.49mm
Level, Class	2
Name of Rows Loaded	A,B,C
Height	11.5mm
Length	53.34mm
Length - Tail	2.67mm
Material Flammability Rating	UL94 V-0
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free
