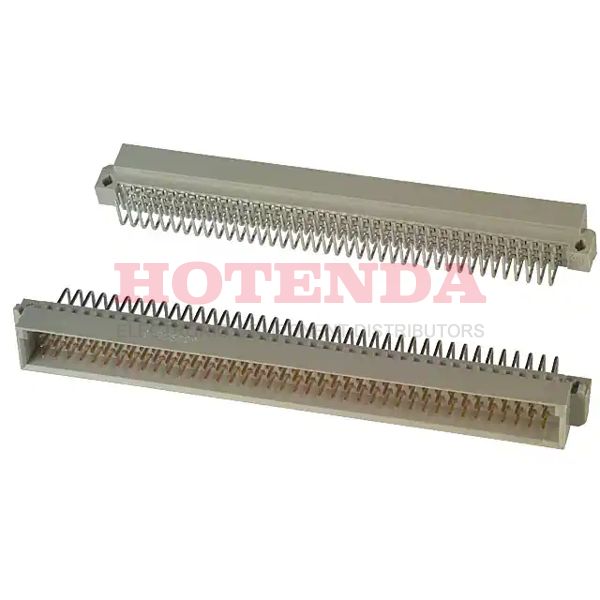

650949-5

new-10%

650949-5

Manufacturer part number:650949-5

Manufacturer:TE Connectivity AMP Connectors

Description:650949-5 datasheet pdf and Backplane Connectors - DIN 41612 product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:650949-5 Datasheet

RoHs Status:non-compliant

Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Factory Lead Time	25 Weeks
Contact Material	Brass
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Housing Material	Polyester
Material - Insulation	Polyester, Glass Filled
PCB Mounting Orientation	Right Angle
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	Eurocard
Published	1999
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Plug, Male Pins
Number of Rows	3
MIL Conformance	NO
DIN Conformance	YES
IEC Conformance	YES
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.100 2.54mm
Total Number of Contacts	120
Orientation	Right Angle
Shielding	Unshielded
Depth	17.73mm
Style	C
Number of Positions Loaded	All
Current Rating	1.5A
Reference Standard	UL
Contact Finish	Gold
Number Of PCB Rows	3
Mating Information	MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code	94V-0
Housing Color	Grey
Lead Length	3.302mm
Operating Supply Voltage	250V
Contact Resistance	15mOhm
Insulation Resistance	1000000000000Ohm
Row Spacing	2.54 mm
ELV	Compliant
Max Current Rating	1.5A
Polarization Key	POLARIZED HOUSING
Contact Current Rating	1.5A
Insulator Color	GRAY
Number of Power Positions	120
Number of Columns	40
Termination Post Length	3.3mm
Level, Class	2
Make First / Break Last	No
Height	12.6238mm
Length	114.3mm
Length - Tail	3.3mm
Material Flammability Rating	UL94 V-0
RoHS Status	Non-RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Contains Lead

Quantity	Unit Price	Ext. Price
1	$14.84000	$14.84
10	$13.59600	$135.96
25	$13.28720	$332.18
50	$12.36000	$618
100	$11.74200	$1174.2
250	$10.81500	$2703.75
500	$10.19700	$5098.5
