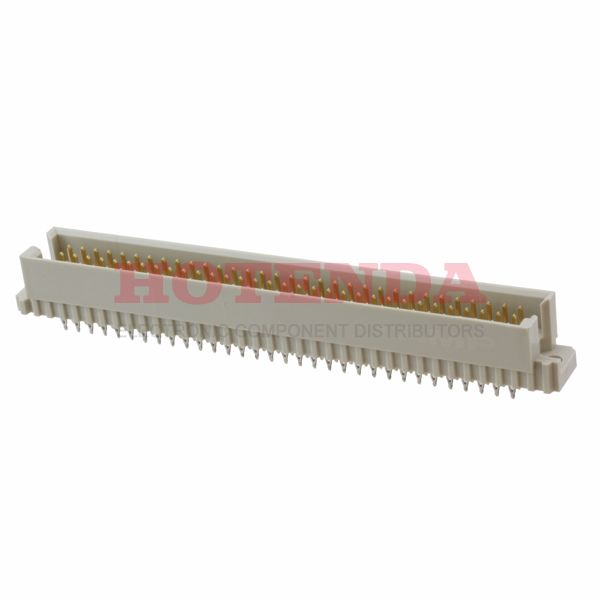

148304-4

new-10%

148304-4

Manufacturer part number:148304-4

Manufacturer:TE Connectivity AMP Connectors

Description:148304-4 datasheet pdf and Backplane Connectors - DIN 41612 product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:148304-4 Datasheet

RoHs Status:non-compliant

Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Factory Lead Time	27 Weeks
Contact Material	Bronze
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyester
Material - Insulation	Polyester Thermoplastic, Glass Filled
PCB Mounting Orientation	Vertical
Packaging	Bulk
Series	Eurocard
Published	1998
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Press-Fit
Connector Type	Header, Male Pins
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Number of Rows	3
Gender	Male
MIL Conformance	NO
DIN Conformance	YES
IEC Conformance	YES
Filter Feature	NO
Mixed Contacts	NO
Pitch	0.100 2.54mm
Total Number of Contacts	96
Orientation	Straight
Depth	11.1mm
Style	R
Number of Positions Loaded	All
Contact Finish	Gold
Housing Color	Grey
Lead Length	4.06mm
Row Spacing	2.54 mm
ELV	Compliant
Sealable	No
Circuit Application	Signal
Number of Signal Positions	96
Number of Columns	32
Termination Post Length	3.1mm
Make First / Break Last	Yes
Length	95mm
Contact Finish Thickness	30.0μin 0.76μm
PCB Thickness	1.57mm
RoHS Status	RoHS Compliant
