Name: B32520E6154K000
Brand: TDK Electronics Inc.
SKU: B32520E6154K000
Price: 0.23000 USD
Availability: InStock

new-10%

B32520E6154K000

Manufacturer part number:B32520E6154K000

Manufacturer:TDK Electronics Inc.

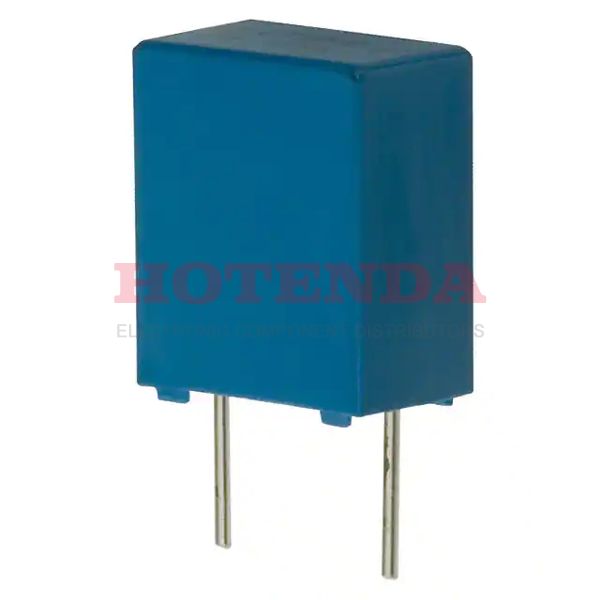

Description:B32520 0.15μF Film Capacitor ±10% Radial PC Pins 400V-DC 200V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked

Case Package:SOT-23

Datasheet:B32520E6154K000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	15 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2013
Series	B32520
Size / Dimension	0.406Lx0.236W 10.30mmx6.00mm
Tolerance	±10%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
Applications	Automotive; EMI, RFI Suppression
HTS Code	8532.25.00.70
Capacitance	0.15μF
Voltage - Rated DC	400V
Terminal Pitch	7.5mm
Reference Standard	AEC-Q200
Voltage - Rated AC	200V
Capacitor Type	FILM CAPACITOR
Lead Spacing	0.295 7.50mm
Rated (DC) Voltage (URdc)	400V
Rated (AC) Voltage (URac)	200V
Custom Capabilities	Special Lead Length Available On Request
Height Seated (Max)	0.472 12.00mm
Length	10.3mm
Width	6mm
RoHS Status	ROHS3 Compliant

B32520E6154K000 Product Details

B32520E6154K000 Overview

To work properly, systems need a rated (DC) voltage of 400V.Its lead spacing is 0.295 7.50mm.Systems require a voltage of 200V for their internal rated power (URac).In a temperature range of -55°C~125°C, the device can be operated.
