Name: 225P15492XD3
Brand: Cornell Dubilier Electronics (CDE)
SKU: 225P15492XD3
Price: 4.45000 USD
Availability: InStock

new-10%

225P15492XD3

Manufacturer part number:225P15492XD3

Manufacturer:Cornell Dubilier Electronics (CDE)

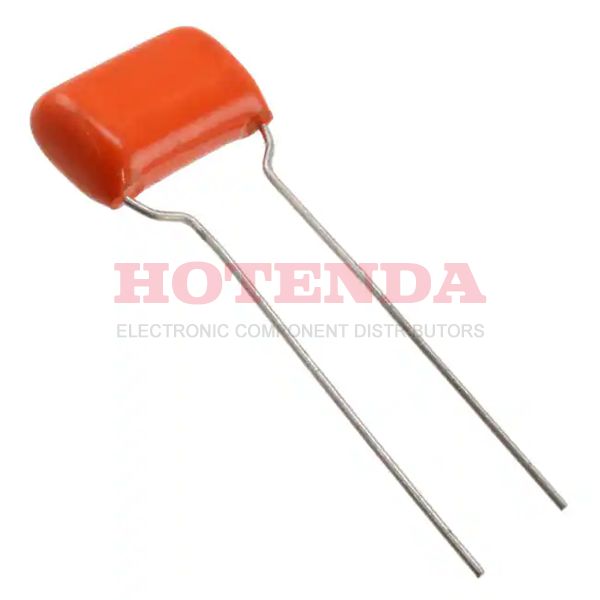

Description:Orange Drop® 225P 0.15μF Film Capacitor ±10% Radial PC Pins 200V-DC 140V-AC Polyester PCB, Through Hole

Case Package:SOT-23

Datasheet:225P15492XD3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	22 Weeks
Mount	PCB, Through Hole
Mounting Type	Through Hole
Package / Case	Radial
Terminal Shape	WIRE
Dielectric Material	Polyester
Operating Temperature	-55°C~85°C
Packaging	Bulk
Published	2001
Series	Orange Drop® 225P
Size / Dimension	0.799Lx0.409W 20.30mmx10.40mm
Tolerance	±10%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
Applications	DC Link, DC Filtering
Additional Feature	RATED AC VOLTAGE (V): 140
HTS Code	8532.25.00.70
Capacitance	0.15μF
Voltage - Rated DC	200V
Depth	10.4mm
Voltage - Rated AC	140V
Lead Pitch	9.5mm
Capacitor Type	FILM CAPACITOR
Dielectric	PET
Lead Spacing	0.374 9.50mm
Insulation Resistance	25MOhm
Lead Diameter	800 μm
Voltage	200V
Life (Hours)	500 hours
Dissipation Factor	0.75 %
Height	18.3mm
Height Seated (Max)	0.740 18.80mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

225P15492XD3 Product Details

225P15492XD3 Overview

There is 25MOhm insulation resistance from the device.The lead spacing of this electrical device is 0.374 9.50mm.The device is capable of operating at the temperature of -55°C~85°C.
