FCA1206C154M-H1

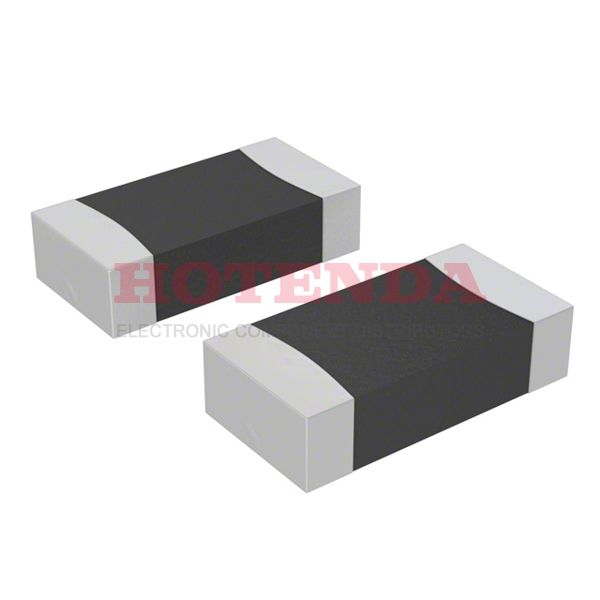

  • FCA1206C154M-H1 - FCA 0.15μF Film Capacitor ±20% 1206 (3216 Metric) Solder Pads 16V-DC 12V-AC Acrylic, Metallized Surface Mount
  • FCA1206C154M-H1 - FCA 0.15μF Film Capacitor ±20% 1206 (3216 Metric) Solder Pads 16V-DC 12V-AC Acrylic, Metallized Surface Mount

FCA1206C154M-H1

FCA1206C154M-H1

Cornell Dubilier Electronics (CDE)

FCA 0.15μF Film Capacitor ±20% 1206 (3216 Metric) Solder Pads 16V-DC 12V-AC Acrylic, Metallized Surface Mount

SOT-23

FCA1206C154M-H1 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 14 Weeks
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric)
Number of Pins 2
Dielectric MaterialAcrylic, Metallized
Weight 10.007382mg
Operating Temperature-40°C~85°C
PackagingTape & Reel (TR)
Published 2006
Series FCA
Size / Dimension 0.126Lx0.063W 3.20mmx1.60mm
Tolerance ±20%
Feature Low ESR
Part StatusActive
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Termination Solder Pads
Max Operating Temperature85°C
Min Operating Temperature -40°C
Applications General Purpose
Capacitance 0.15μF
Voltage - Rated DC 16V
Voltage - Rated AC 12V
Case Code (Metric) 3216
Case Code (Imperial) 1206
Lead Pitch 650μm
Life (Hours) 1000 hours
Height 800μm
Height Seated (Max) 0.039 1.00mm
Length 3.2004mm
Width 1.6mm
RoHS StatusROHS3 Compliant
In-Stock:7928 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.914566$0.914566
10$0.862799$8.62799
100$0.813961$81.3961
500$0.767887$383.9435
1000$0.724422$724.422

FCA1206C154M-H1 Product Details

FCA1206C154M-H1 Overview


In addition to operating at -40°C~85°C degrees, the device is capable of operating at other temperatures as well.

FCA1206C154M-H1 Features




FCA1206C154M-H1 Applications


There are a lot of Cornell Dubilier Electronics (CDE)
FCA1206C154M-H1 applications of film capacitors.


  • Satellite TV
  • Global positioning systems
  • Filters
  • VCO's
  • Matching networks
  • Snubbering
  • Filtering
  • IGBT
  • Compact fluorescent lamps (CFL)
  • Switch mode power supplies
